TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Spout length

Flow rate

Acoustic class

3.2195.7.004.131.1 / with accessories

3.2195.7.004.400.1 / without accessories

134-166 mm

1/2“

1/2“ (DN 15)

155 mm

spout: 20 l/min (3 bar)

shower: 19.2 l/min (3 bar)

spout: IC

shower: IB

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

bath/shower single-lever mixer

40 mm Ecototal cartridge with flow and

temperature brake

fixed spout

automatic diverter

intrinsically safe against backflow

order no. 3.2195.7.004.131.1 – complete with

synthetic flexible hose 1500 mm and handshower

Aquajet

wall connections

chrome

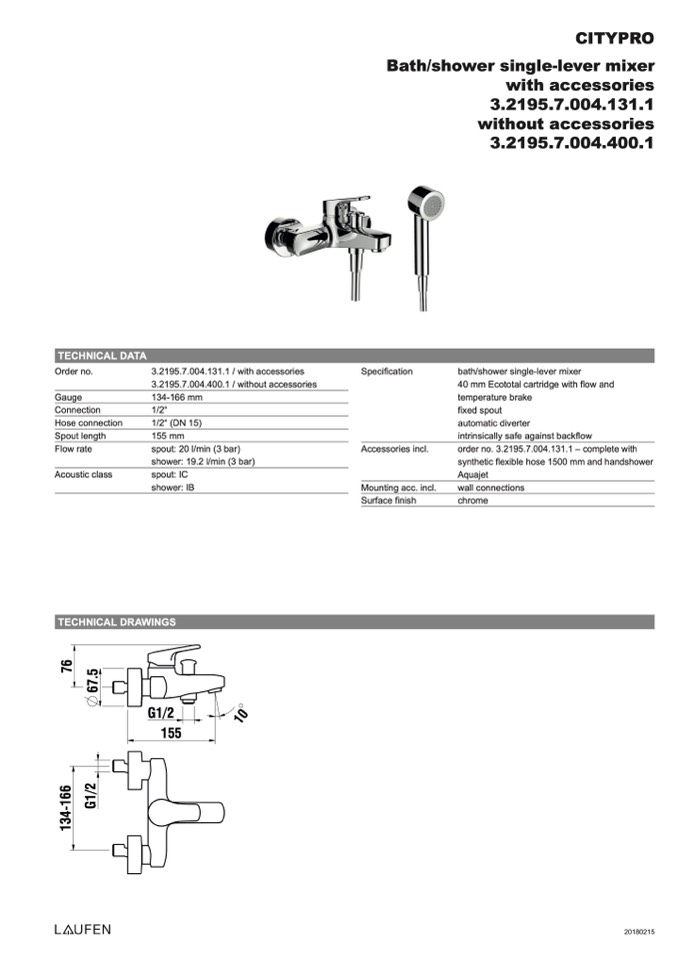

CITYPRO

Bath/shower single-lever mixer

with accessories

3.2195.7.004.131.1

without accessories

3.2195.7.004.400.1

TECHNICAL DRAWINGS

G1/2

155

20180215

1

0

1

3

4

-

1

6

6

7

6

G

1

/

2

6

7

.

5
