TECHNICAL DATA / WITH POP-UP WASTE

TECHNICAL DATA / WITHOUT POP-UP WASTE

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Mounting acc. excl.

Accessories incl.

Surface finish

3.1133.1.004.111.1

3/8“ flexible connection hoses

110 mm

5.7 l/min (3 bar)

I/-

basin single-lever mixer

joystick cartridge

fixed spout

transparent crystall disc supplied - other colours

are to be ordered separately

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

pop-up waste 11⁄4“

chrome

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Mounting acc. excl.

Surface finish

3.1133.1.004.110.1

3/8“ flexible connection hoses

110 mm

5.7 l/min (3 bar)

I/-

basin single-lever mixer

joystick cartridge

fixed spout

transparent crystall disc supplied - other colours

are to be ordered separately

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

chrome

TECHNICAL DRAWINGS

TECHNICAL DRAWINGS

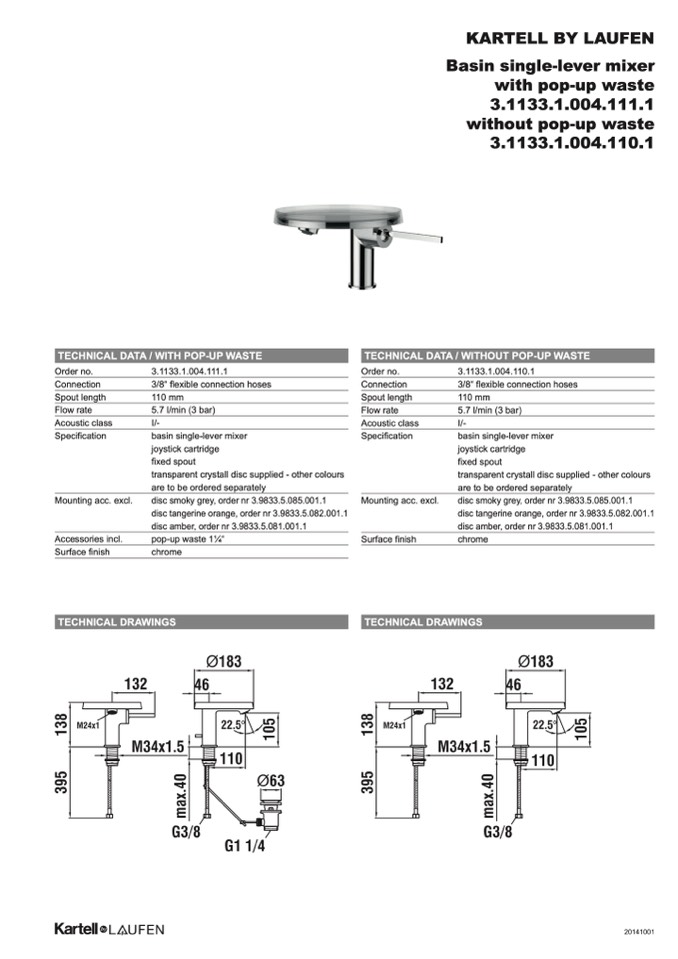

KARTELL BY LAUFEN

Basin single-lever mixer

with pop-up waste

3.1133.1.004.111.1

without pop-up waste

3.1133.1.004.110.1

20141001
