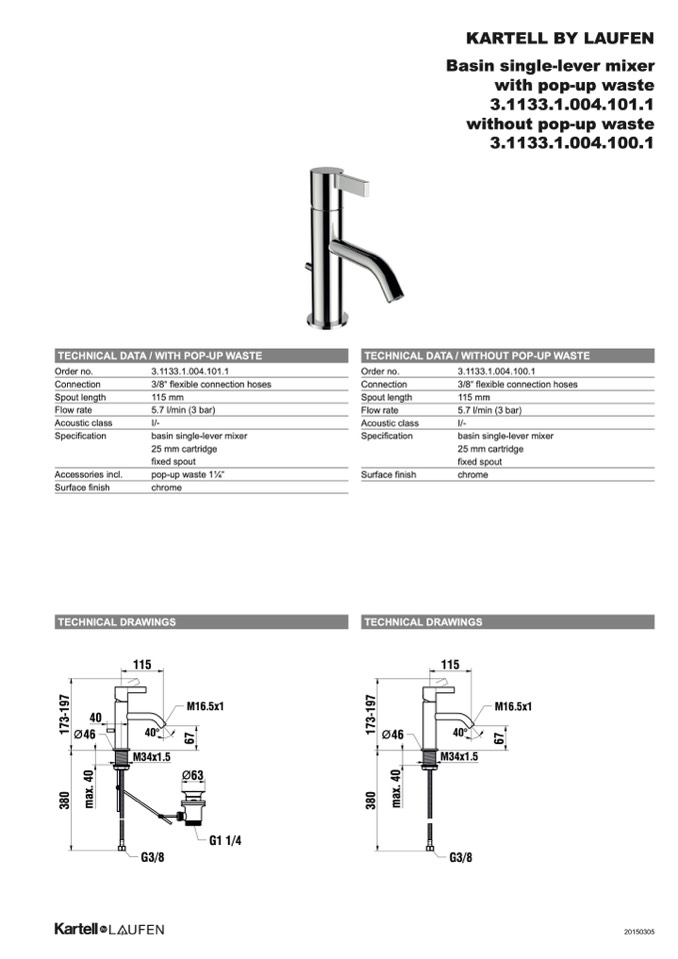

TECHNICAL DATA / WITH POP-UP WASTE
KARTELL BY LAUFEN
Basin single-lever mixer
with pop-up waste
3.1133.1.004.101.1
without pop-up waste
3.1133.1.004.100.1
TECHNICAL DATA / WITHOUT POP-UP WASTE
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Accessories incl.
Surface finish
3.1133.1.004.101.1
3/8“ flexible connection hoses
115 mm
5.7 l/min (3 bar)
I/-
basin single-lever mixer
25 mm cartridge
fixed spout
pop-up waste 11⁄4“
chrome
Order no.
Connection
Spout length
Flow rate
Acoustic class
Specification
Surface finish
3.1133.1.004.100.1
3/8“ flexible connection hoses
115 mm
5.7 l/min (3 bar)
I/-
basin single-lever mixer
25 mm cartridge
fixed spout
chrome
TECHNICAL DRAWINGS
115
40°
M34x1.5
G3/8
M16.5x1
TECHNICAL DRAWINGS
115
Ø46
40°
M34x1.5
G3/8
M16.5x1
40
Ø46
3
8
0
m
a
x
.
4
0
1
7
3
-
1
9
7
3
8
0
m
a
x
.
4
0
1
7
3
-
1
9
7
6
7
6
7
ECHELLE 5:84
ECHELLE 5:84
20150305
Ø63
G1 1/4
