TECHNICAL DATA

Order no.

Connection

Spout length

Flow rate

Acoustic class

3.1133.8.004.110.1

3/8“ flexible connection hoses

110 mm

5.7 l/min (3 bar)

I/-

Specification

Mounting acc. excl.

Surface finish

basin single-lever mixer

joystick cartridge

fixed spout

transparent crystall disc supplied - other colours

are to be ordered separately

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

chrome

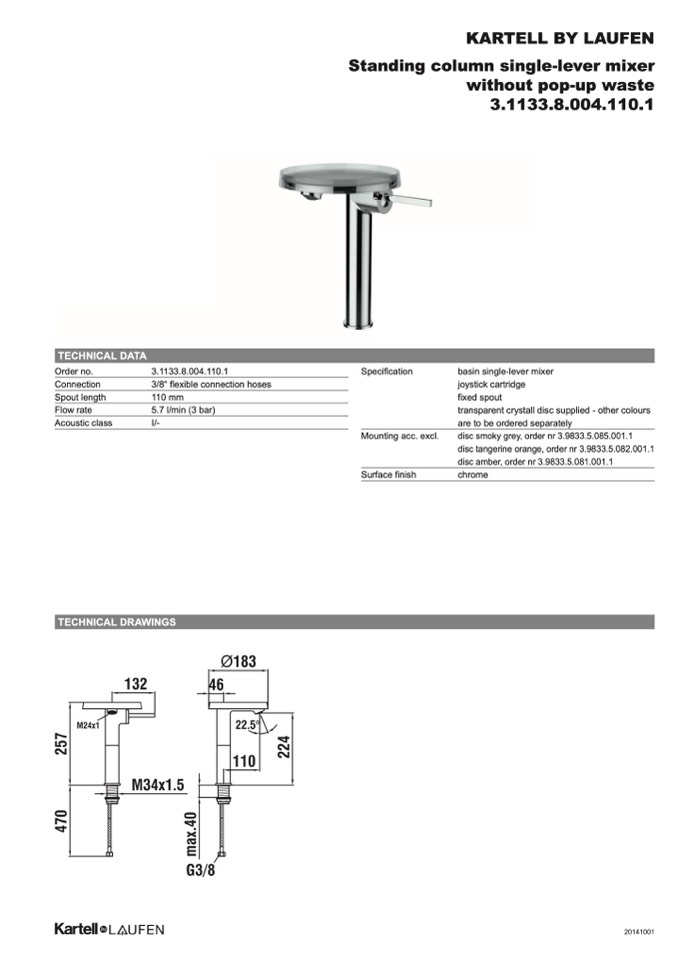

TECHNICAL DRAWINGS

KARTELL BY LAUFEN

Standing column single-lever mixer

without pop-up waste

3.1133.8.004.110.1

20141001
