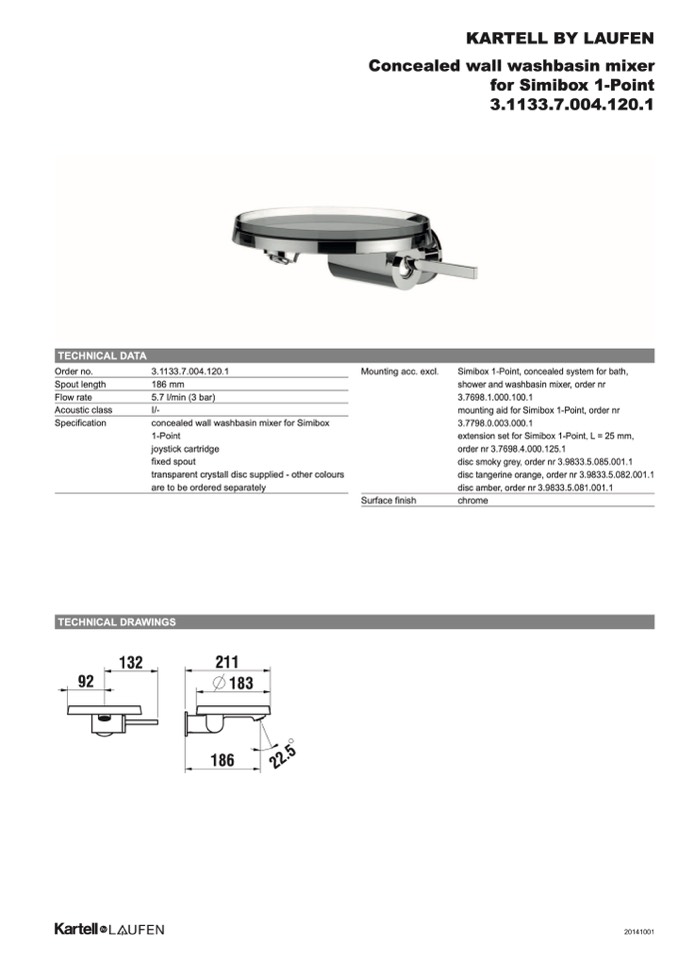

TECHNICAL DATA

Order no.

Spout length

Flow rate

Acoustic class

Specification

3.1133.7.004.120.1

186 mm

5.7 l/min (3 bar)

I/-

concealed wall washbasin mixer for Simibox

1-Point

joystick cartridge

fixed spout

transparent crystall disc supplied - other colours

are to be ordered separately

Mounting acc. excl.

Surface finish

Simibox 1-Point, concealed system for bath,

shower and washbasin mixer, order nr

3.7698.1.000.100.1

mounting aid for Simibox 1-Point, order nr

3.7798.0.003.000.1

extension set for Simibox 1-Point, L = 25 mm,

order nr 3.7698.4.000.125.1

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

chrome

TECHNICAL DRAWINGS

132

211

183

186

92

KARTELL BY LAUFEN

Concealed wall washbasin mixer

for Simibox 1-Point

3.1133.7.004.120.1

2

2

.

5

20141001
