TECHNICAL DATA

Order no.

Connection

Spout length

Flow rate

Acoustic class

3.1233.6.004.120.1

1/2“ flexible connection hoses

175 mm

5.7 l/min (3 bar)

I/-

Specification

Mounting acc. excl.

Surface finish

concealed basin wall mixer 2-handles

fixed spout

brass rough-in concealed set with 3 plugs,

order no. 3.7698.2.000.100.1

extension set for concealed wall mixer,

L =25 mm, order no. 3.7670.4.000.050.1

chrome

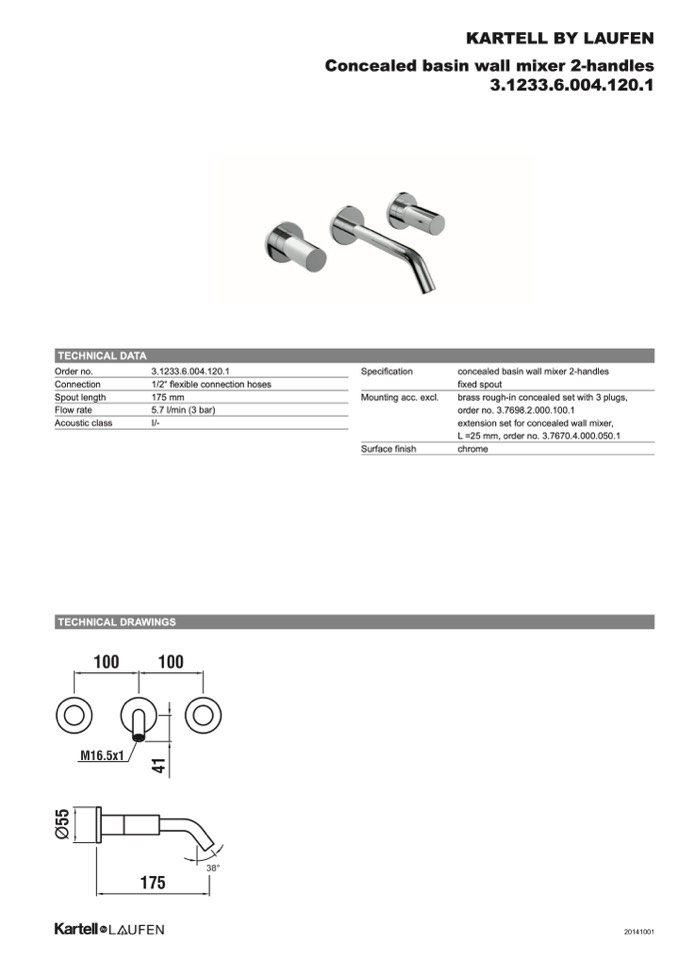

TECHNICAL DRAWINGS

KARTELL BY LAUFEN

Concealed basin wall mixer 2-handles

3.1233.6.004.120.1

20141001
