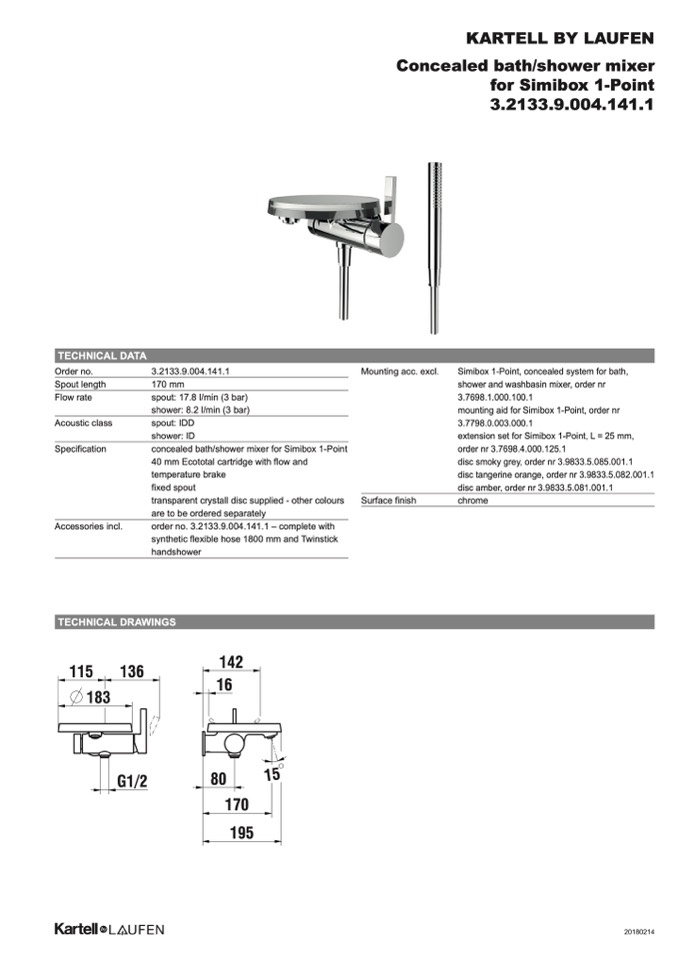

TECHNICAL DATA

Order no.

Spout length

Flow rate

Acoustic class

Specification

Accessories incl.

3.2133.9.004.141.1

170 mm

spout: 17.8 l/min (3 bar)

shower: 8.2 l/min (3 bar)

spout: IDD

shower: ID

concealed bath/shower mixer for Simibox 1-Point

40 mm Ecototal cartridge with flow and

temperature brake

fixed spout

transparent crystall disc supplied - other colours

are to be ordered separately

order no. 3.2133.9.004.141.1 – complete with

synthetic flexible hose 1800 mm and Twinstick

handshower

Mounting acc. excl.

Surface finish

Simibox 1-Point, concealed system for bath,

shower and washbasin mixer, order nr

3.7698.1.000.100.1

mounting aid for Simibox 1-Point, order nr

3.7798.0.003.000.1

extension set for Simibox 1-Point, L = 25 mm,

order nr 3.7698.4.000.125.1

disc smoky grey, order nr 3.9833.5.085.001.1

disc tangerine orange, order nr 3.9833.5.082.001.1

disc amber, order nr 3.9833.5.081.001.1

chrome

TECHNICAL DRAWINGS

115

136

183

G1/2

195

142

16

80

170

KARTELL BY LAUFEN

Concealed bath/shower mixer

for Simibox 1-Point

3.2133.9.004.141.1

15

20180214
