TECHNICAL DATA

Order no.

Gauge

Connection

Hose connection

Flow rate

Acoustic class

3.3121.7.004.144.1

137-169 mm

1/2“

1/2“ (DN 15)

12 l/min (3 bar)

IIB

Specification

Accessories incl.

Mounting acc. incl.

Surface finish

shower single-lever mixer

35 mm Quattro-G cartridge with flow and

temperature limitation

intrinsically safe against backflow

synthetic flexible hose 1800 mm and hand-

shower Uno

wall connections

chrome

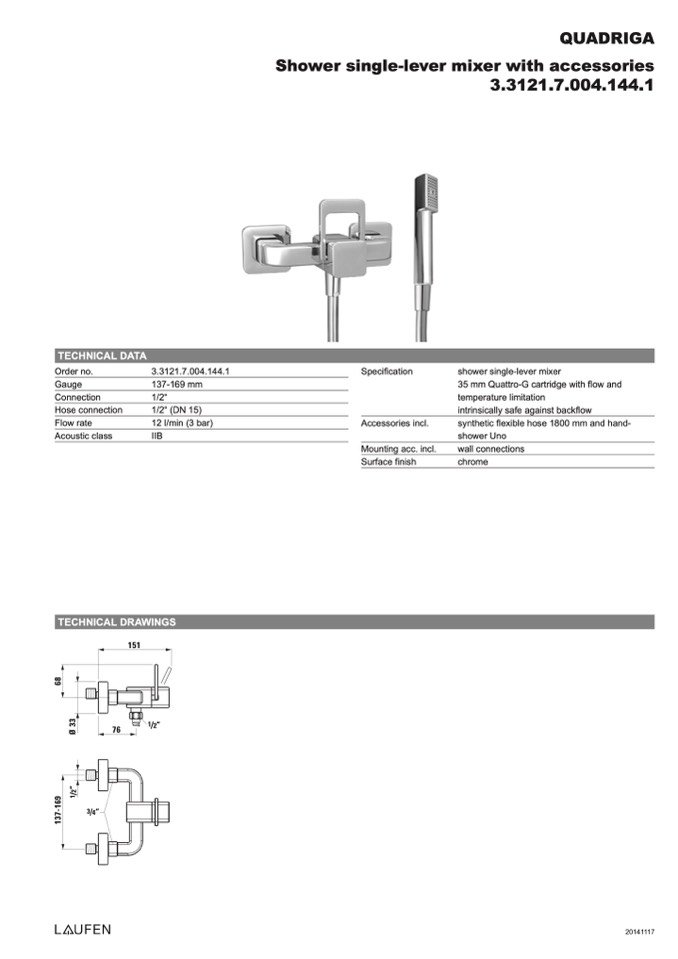

QUADRIGA

Shower single-lever mixer with accessories

3.3121.7.004.144.1

TECHNICAL DRAWINGS

151

1/2“

76

3/4“

20141117

1

3

7

-

1

6

9

6

8

1

/

2

“

Ø

3

3
