TECHNICAL DATA / WITH POP-UP WASTE

TECHNICAL DATA / WITHOUT POP-UP WASTE

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Accessories incl.

Surface finish

3.1195.1.004.521.1

3/8“ flexible connection hoses

140 mm

5.7 l/min (3 bar)

I/-

basin single-lever mixer

40 mm cartridge with flow and temperature

limitations

special „clinic“ lever, 18 cm long (mesured from

the middle of the cartridge)

laminar aerator M24x1

fixed spout

pop-up waste 11⁄4“

chrome

Order no.

Connection

Spout length

Flow rate

Acoustic class

Specification

Surface finish

3.1195.1.004.520.1

3/8“ flexible connection hoses

140 mm

5.7 l/min (3 bar)

I/-

basin single-lever mixer

40 mm cartridge with flow and temperature

limitations

special „clinic“ lever, 18 cm long (mesured from

the middle of the cartridge)

laminar aerator M24x1

fixed spout

chrome

TECHNICAL DRAWINGS

33

G3/8"

TECHNICAL DRAWINGS

140

140

63

G1 1/4"

33

G3/8"

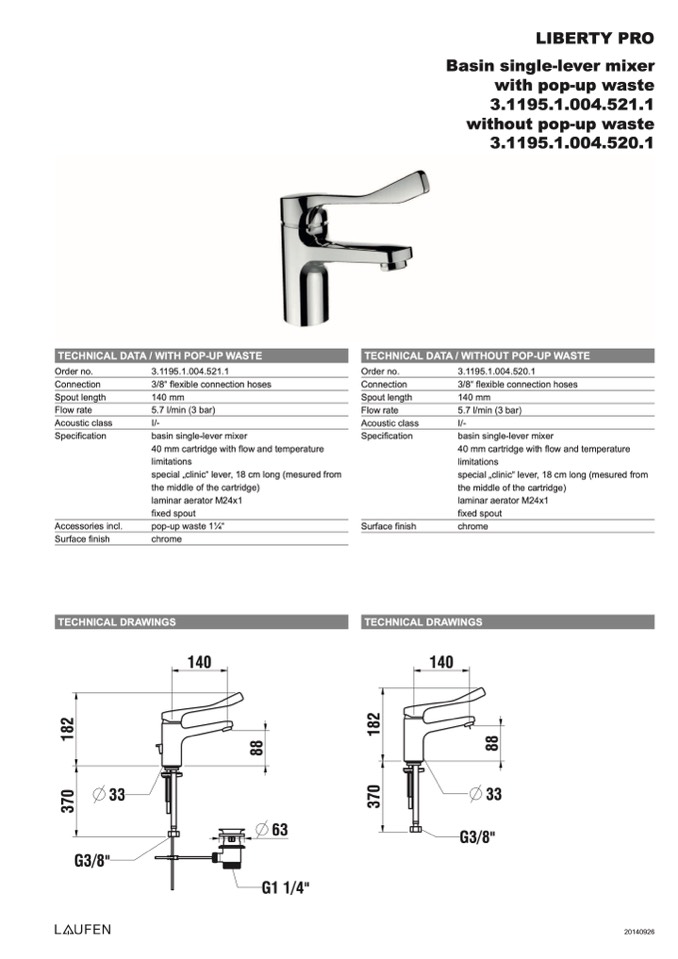

LIBERTY PRO

Basin single-lever mixer

with pop-up waste

3.1195.1.004.521.1

without pop-up waste

3.1195.1.004.520.1

3

7

0

1

8

2

3

7

0

1

8

2

8

8

8

8

20140926
