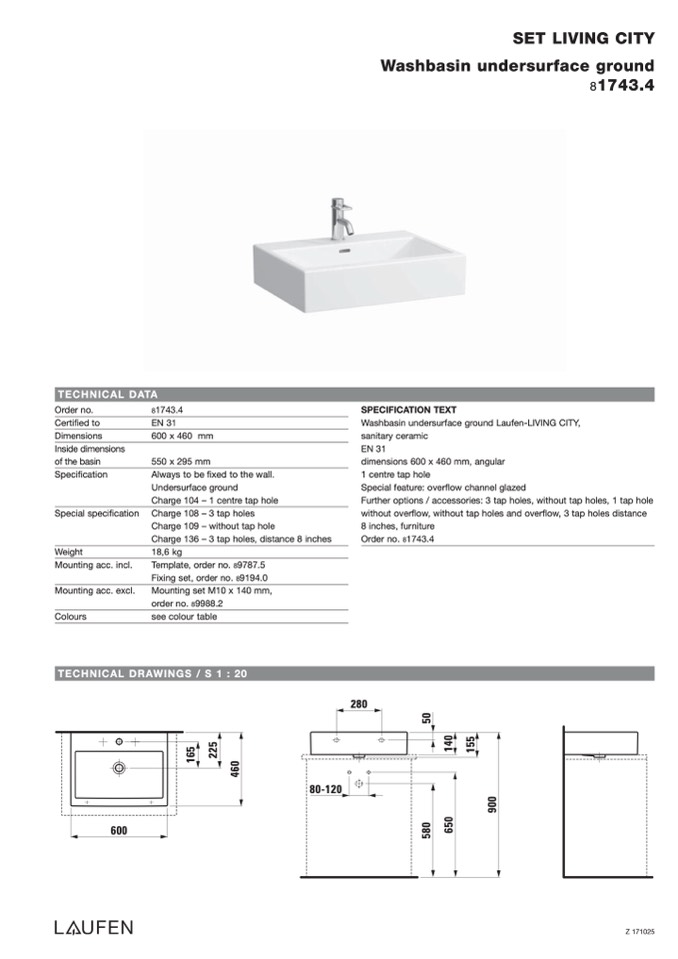

SET LIVING CITY

Washbasin undersurface ground

81743.4

TECHNICAL DATA

Order no.

Certified to

Dimensions

Inside dimensions

of the basin

Specification

Special specification

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

8

1743.4

EN 31

600 x 460 mm

550 x 295 mm

Always to be fixed to the wall.

Undersurface ground

Charge 104 – 1 centre tap hole

Charge 108 – 3 tap holes

Charge 109 – without tap hole

Charge 136 – 3 tap holes, distance 8 inches

18,6 kg

Template, order no. 89787.5

Fixing set, order no. 89194.0

Mounting set M10 x 140 mm,

order no. 89988.2

see colour table

SPECIFICATION TEXT

Washbasin undersurface ground Laufen-LIVING CITY,

sanitary ceramic

EN 31

dimensions 600 x 460 mm, angular

1 centre tap hole

Special feature: overflow channel glazed

Further options / accessories: 3 tap holes, without tap holes, 1 tap hole

without overflow, without tap holes and overflow, 3 tap holes distance

8 inches, furniture

Order no. 81743.4

TECHNICAL DRAWINGS / S 1 : 20

280

80-120

600

Z 171025

5

8

0

6

5

0

5

0

1

4

0

9

0

0

4

6

0

1

6

5

2

2

5

1

5

5
