Order no.

Certified to

Dimensions

Inside dimensions

of the basin

Specification

Special specification

Weight

Mounting acc. excl.

Colours

8

1543.2

EN 31

450 x 380 mm

395 x 215 mm

Charge 104 – 1 centre tap hole

Charge 109 – without tap hole

12,0 kg

Mounting set M10 x 140 mm,

order no. 89988.2

see colour table

SPECIFICATION TEXT

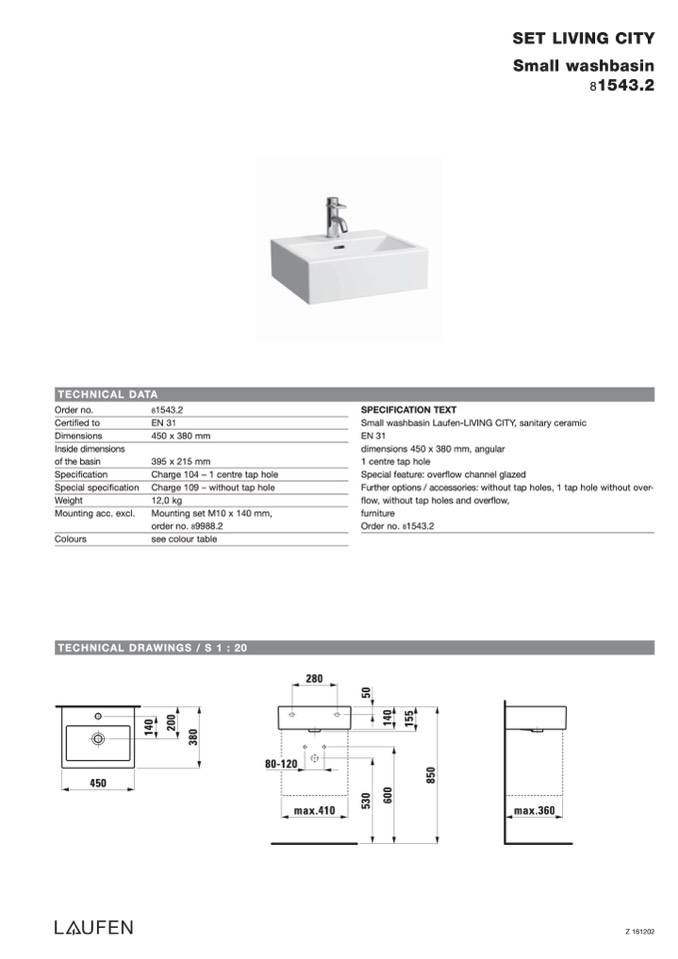

SET LIVING CITY

Small washbasin

81543.2

TECHNICAL DATA

Small washbasin Laufen-LIVING CITY, sanitary ceramic

EN 31

dimensions 450 x 380 mm, angular

1 centre tap hole

Special feature: overflow channel glazed

Further options / accessories: without tap holes, 1 tap hole without over-

flow, without tap holes and overflow,

furniture

Order no. 81543.2

TECHNICAL DRAWINGS / S 1 : 20

450

280

80-120

max.410

max.360

Z 161202

5

3

0

6

0

0

5

0

1

4

0

8

5

0

3

8

0

1

4

0

2

0

0

1

5

5
