Order no.

Certified to

matching for

Specification

Water inlet

Weight

Mounting acc. incl.

Colours

8

2870.1

EN 14055

Floorstanding WC pan

order no. 82470.6 / Charge 000

Flushing mechanism Dual-Flush

With water condensation insulation:

Charge 871 – 5/3-l (6/3-l-flush, 4,5/3-l-flush)

Without water condensation insulation:

Charge 874 – 5/3-l (6/3-l-flush, 4,5/3-l-flush)

rear, 1/2” brass

13,0 kg

Fastening kit

Angle valve for rear water inlet

Water inlet hose

see colour table

SPECIFICATION TEXT

Cistern Laufen-PALACE, sanitary ceramic

EN 14055, dimensions 360 x 160 x 420 mm

Dual-Flush 5/3-l (6/3-l-flush, 4,5/3-l-flush)

water inlet rear, 1/2” brass

matching floorstanding WC pan, order no. 82470.6/option 000

Special feature: with or without water condensation insulation

Order no. 82870.1

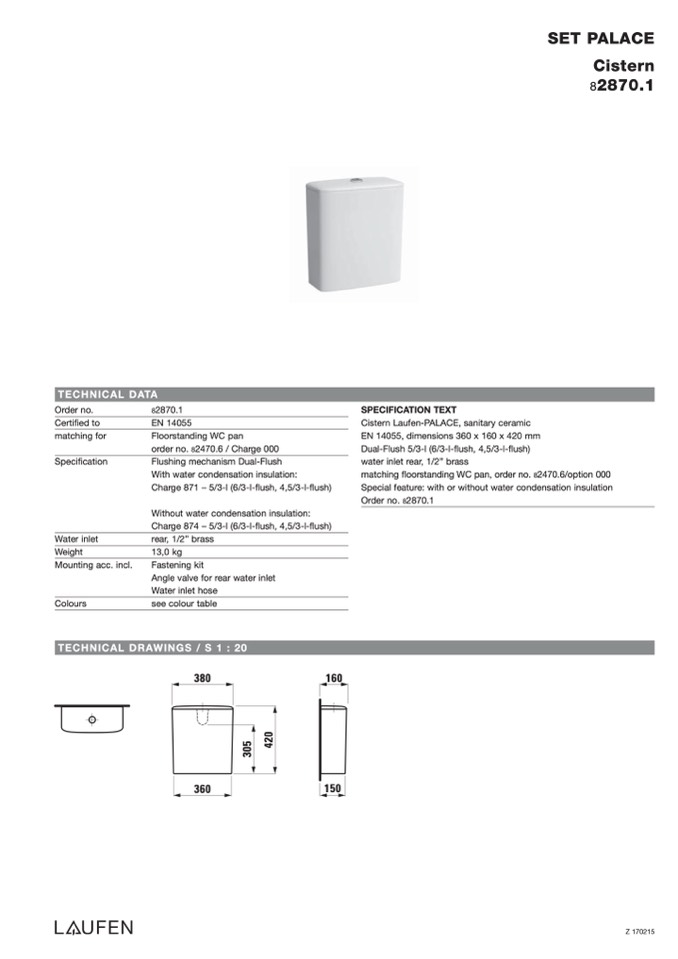

SET PALACE

Cistern

82870.1

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 20

380

160

360

150

Z 170215

3

0

5

4

2

0
