TECHNICAL DATA

Order no.

Certified to

Dimensions

Inside dimensions

of the basin

matching for

Specification

Special specification

Weight

8

1696.2

EN 31

550 x 465 mm

510 x 303 mm

Washtop Case and Space

Always to be fixed to the wall.

Charge 104 – 1 centre tap hole

Charge 108 – 3 tap holes

Charge 109 – without tap hole

Charge 136 – 3 tap holes, distance 8 inches

Charge 142 – without tap hole, without overflow

and without open drain

Charge 156 – 1 centre tap hole, without overflow

and without open drain

16,0 kg

Mounting acc. incl.

Mounting acc. excl.

Colours

SPECIFICATION TEXT

Template, order no. 89996.1

Fastening kit, order no. 89194.0

Mounting set M10 x 140 mm,

order no. 89988.2

see colour table

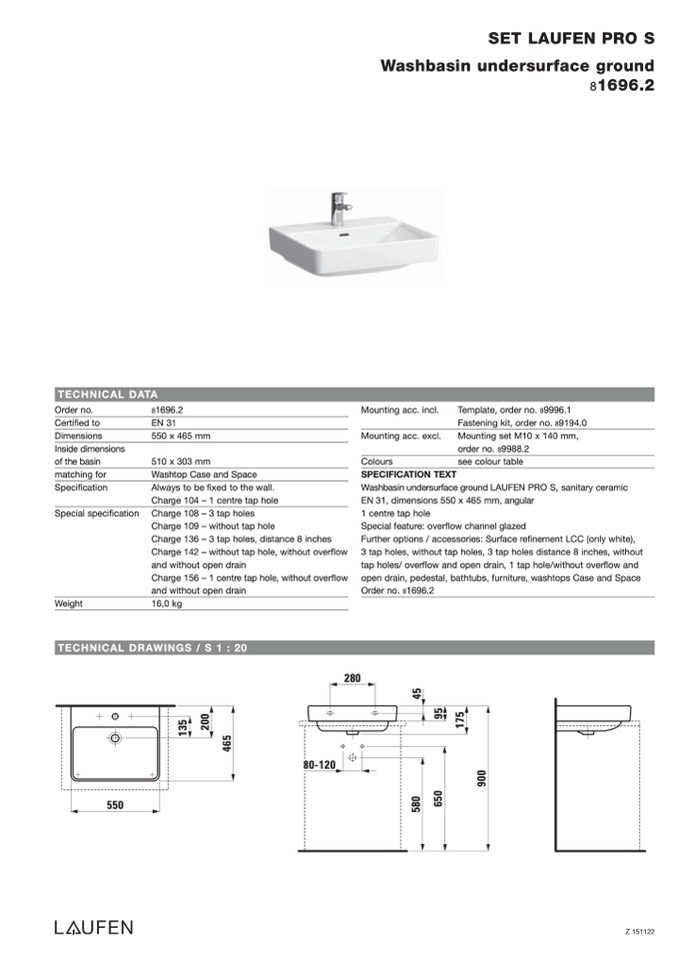

SET LAUFEN PRO S

Washbasin undersurface ground

81696.2

Washbasin undersurface ground LAUFEN PRO S, sanitary ceramic

EN 31, dimensions 550 x 465 mm, angular

1 centre tap hole

Special feature: overflow channel glazed

Further options / accessories: Surface refinement LCC (only white),

3 tap holes, without tap holes, 3 tap holes distance 8 inches, without

tap holes/ overflow and open drain, 1 tap hole/without overflow and

open drain, pedestal, bathtubs, furniture, washtops Case and Space

Order no. 81696.2

TECHNICAL DRAWINGS / S 1 : 20

280

80-120

550

Z 151122

5

8

0

6

5

0

4

5

9

5

9

0

0

4

6

5

1

3

5

2

0

0

1

7

5
