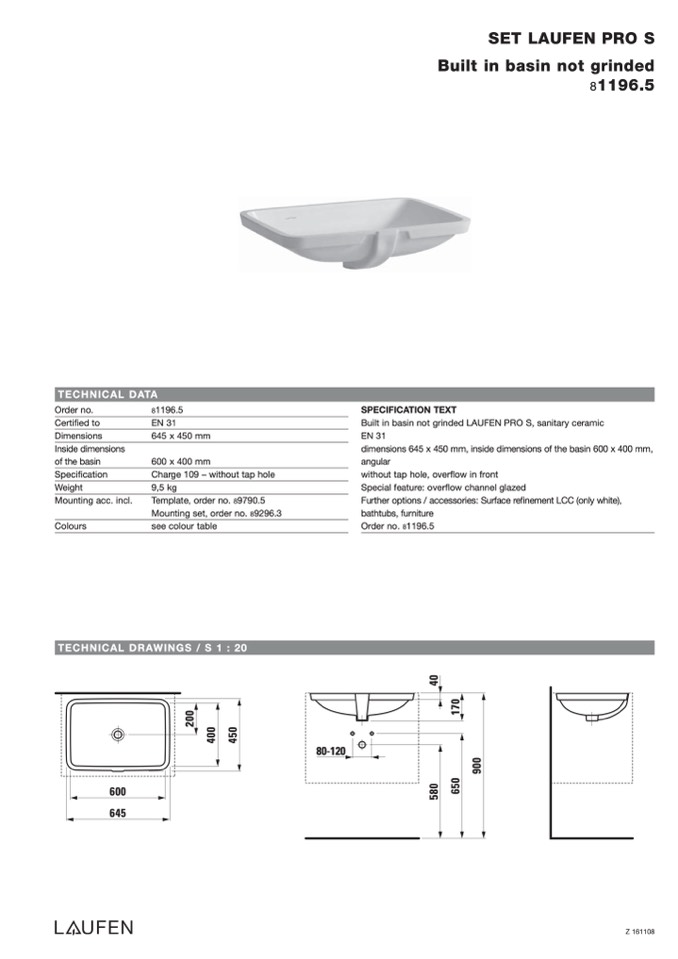

TECHNICAL DATA

Order no.

Certified to

Dimensions

Inside dimensions

of the basin

Specification

Weight

Mounting acc. incl.

Colours

8

1196.5

EN 31

645 x 450 mm

600 x 400 mm

Charge 109 – without tap hole

9,5 kg

Template, order no. 89790.5

Mounting set, order no. 89296.3

see colour table

SPECIFICATION TEXT

Built in basin not grinded LAUFEN PRO S, sanitary ceramic

EN 31

dimensions 645 x 450 mm, inside dimensions of the basin 600 x 400 mm,

angular

without tap hole, overflow in front

Special feature: overflow channel glazed

Further options / accessories: Surface refinement LCC (only white),

bathtubs, furniture

Order no. 81196.5

SET LAUFEN PRO S

Built in basin not grinded

81196.5

TECHNICAL DRAWINGS / S 1 : 20

600

645

80-120

Z 161108

5

8

0

6

5

0

4

0

1

7

0

9

0

0

2

0

0

4

0

0

4

5

0
