TECHNICAL DATA

Order no.

Certified to

Dimensions

Specification

Special specification

Weight

Accessories excl.

Mounting acc. excl.

Colours

8

1480.4

EN 31

800 x 500 mm

Always to be fixed to the wall.

Charge 104 – 1 tap hole

Charge 109 – without tap hole

19,0 kg

Towel rail, order no. 38180.1

valve without overflow always open, with

ceramic valve cover plate, order no. 89818.4

Mounting set M10 x 140 mm, order no. 89988.2

see colour table

SPECIFICATION TEXT

Countertop basin Laufen-PALOMBA COLLECTION, sanitary ceramic

EN 31

dimensions 800 x 500 mm, angular

1 tap hole

Special feature: overflow channel glazed

Further options / accessories: Surface refinement LCC (only white),

without tap holes, valve without overflow, towel rail 38180.1, bathtubs,

furniture

Order no. 81480.4

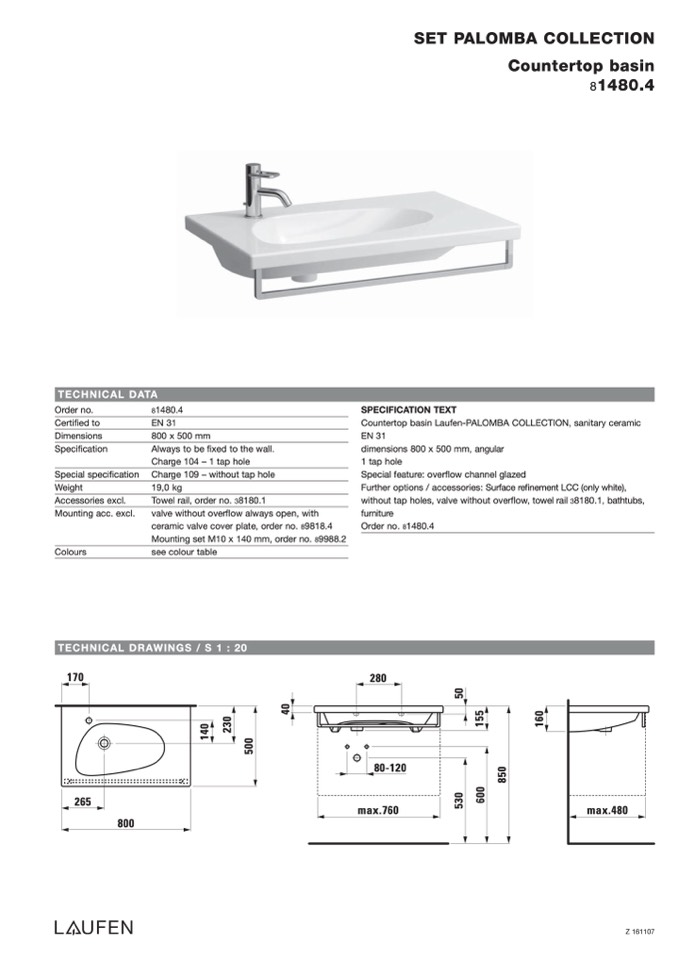

SET PALOMBA COLLECTION

Countertop basin

81480.4

TECHNICAL DRAWINGS / S 1 : 20

170

265

800

280

80-120

max.760

max.480

Z 161107

5

3

0

6

0

0

5

0

1

5

5

5

0

0

8

5

0

1

6

0

1

4

0

2

3

0

4

0
