Order no.

Certified to

Dimensions

Inside dimensions

of the basin

Specification

Weight

Mounting acc. incl.

Colours

8

1896.2

EN 31

465 x 470 mm

420 x 420 mm

Charge 109 – without tap hole

9,5 kg

Template, order no. 89696.0

Mounting set, order no. 89296.3

see colour table

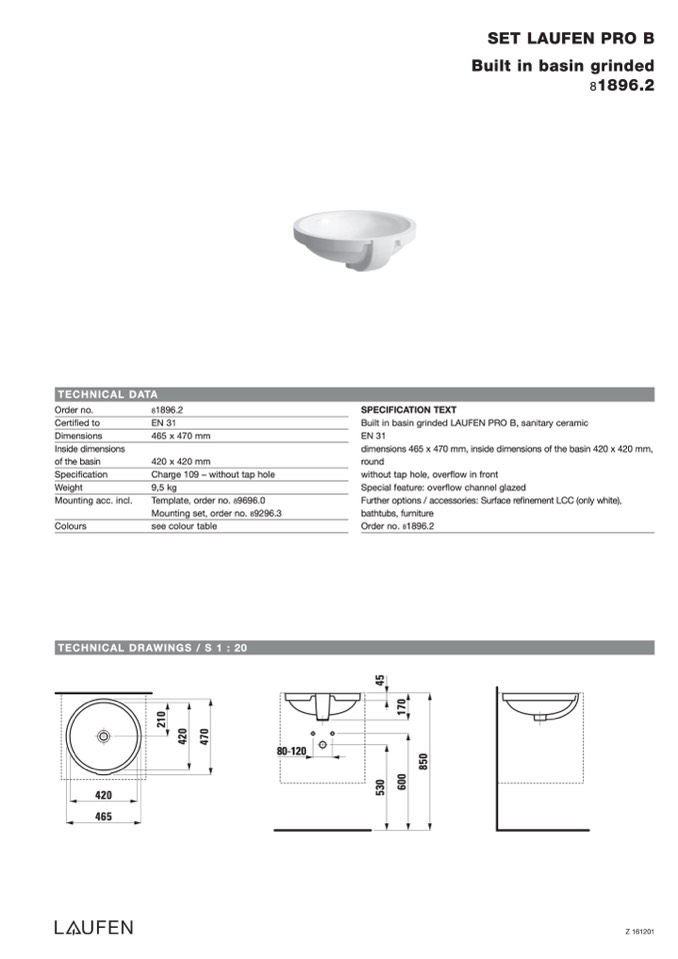

SPECIFICATION TEXT

SET LAUFEN PRO B

Built in basin grinded

81896.2

TECHNICAL DATA

Built in basin grinded LAUFEN PRO B, sanitary ceramic

EN 31

dimensions 465 x 470 mm, inside dimensions of the basin 420 x 420 mm,

round

without tap hole, overflow in front

Special feature: overflow channel glazed

Further options / accessories: Surface refinement LCC (only white),

bathtubs, furniture

Order no. 81896.2

TECHNICAL DRAWINGS / S 1 : 20

80-120

420

465

Z 161201

5

3

0

6

0

0

4

5

1

7

0

8

5

0

2

1

0

4

2

0

4

7

0
