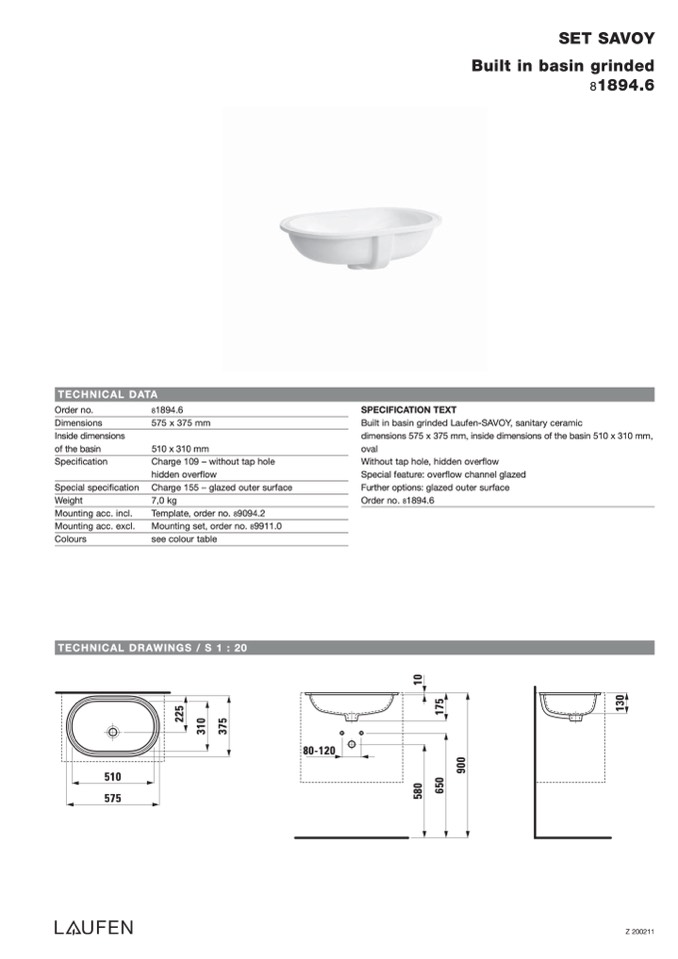

TECHNICAL DATA

Order no.

Dimensions

Inside dimensions

of the basin

Specification

Special specification

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

8

1894.6

575 x 375 mm

510 x 310 mm

Charge 109 – without tap hole

hidden overflow

Charge 155 – glazed outer surface

7,0 kg

Template, order no. 89094.2

Mounting set, order no. 89911.0

see colour table

SPECIFICATION TEXT

SET SAVOY

Built in basin grinded

81894.6

Built in basin grinded Laufen-SAVOY, sanitary ceramic

dimensions 575 x 375 mm, inside dimensions of the basin 510 x 310 mm,

oval

Without tap hole, hidden overflow

Special feature: overflow channel glazed

Further options: glazed outer surface

Order no. 81894.6

TECHNICAL DRAWINGS / S 1 : 20

510

575

80-120

Z 200211

5

8

0

6

5

0

1

0

1

7

5

9

0

0

2

2

5

3

1

0

3

7

5

1

3

0
