TECHNICAL DATA

Order no.

Certified to

Specification

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

8

6670.0

Wallhung WC – EN 977, EN 33

Wallhung WC rimless, washdown for 4,5/3-l-flush

with seat and cover, Duroplast,

removable, with hollow space fixation, with

automatic lowering system

32,5 kg

Installation tape, order no. 89299.2

laufen EasyFit system M12, order no. 89282.7

Stone screw fastening kit M12

White

SPECIFICATION TEXT

PALACE Wallhung WC Pack rimless, washdown, with seat and cover

with lowering system

Wallhung WC rimless: sanitary ceramic, washdown, for concealed cistern,

EN 977, EN 33, 4,5/3-l-flush, dimension ceramic 360 x 560 x 375 mm,

concealed trap, concealed fixation

Special feature: rimless, concealed surfaces directing water are fully

glazed throughout, vacuum checked

WC seat and cover: Duroplast, removable, with hollow space fixation,

with automatic lowering system

Order no. 86670.0

85

15

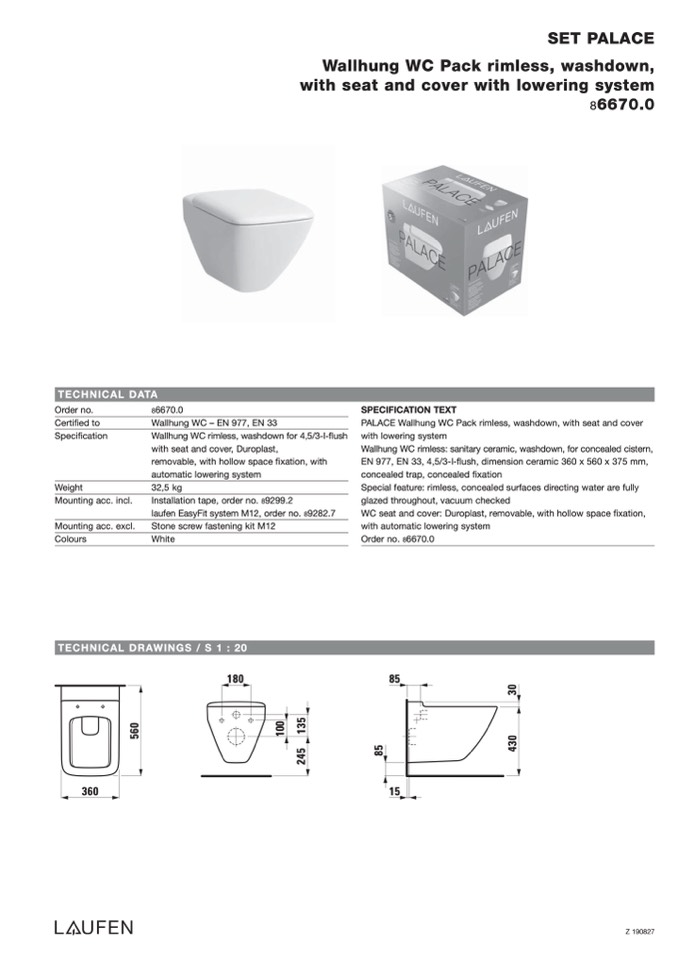

SET PALACE

Wallhung WC Pack rimless, washdown,

with seat and cover with lowering system

86670.0

TECHNICAL DRAWINGS / S 1 : 20

180

360

Z 190827

1

0

0

2

4

5

1

3

5

8

5

5

6

0

4

3

0

3

0
