TECHNICAL DATA

Order no.

Certified to

Specification

Outlet

Weight

Mounting acc. incl.

8

6795.0.000.870.1

Floorstanding WC – EN 997, EN 33

Cistern – EN 14055

Floorstanding WC pan, washdown

for 5,9/3-l-flush

with cistern, flushing mechanism Dual-Flush

5/3-l (6/3-l-flush, 4,5/3-l-flush), water inlet side

left, side right, 3/8” brass or rear, 1/2” brass,

with water condensation insulation

with seat and cover slim, Duroplast, removable,

with hollow space fixation, with automatic

lowering system

horizontal

36,5 kg

Fixing set, order no. 89175.7

Fastening kit for cistern, order no. 89744.6

Mounting acc. excl.

Colours

SPECIFICATION TEXT

Angle valve for water inlet

Water inlet hose

White

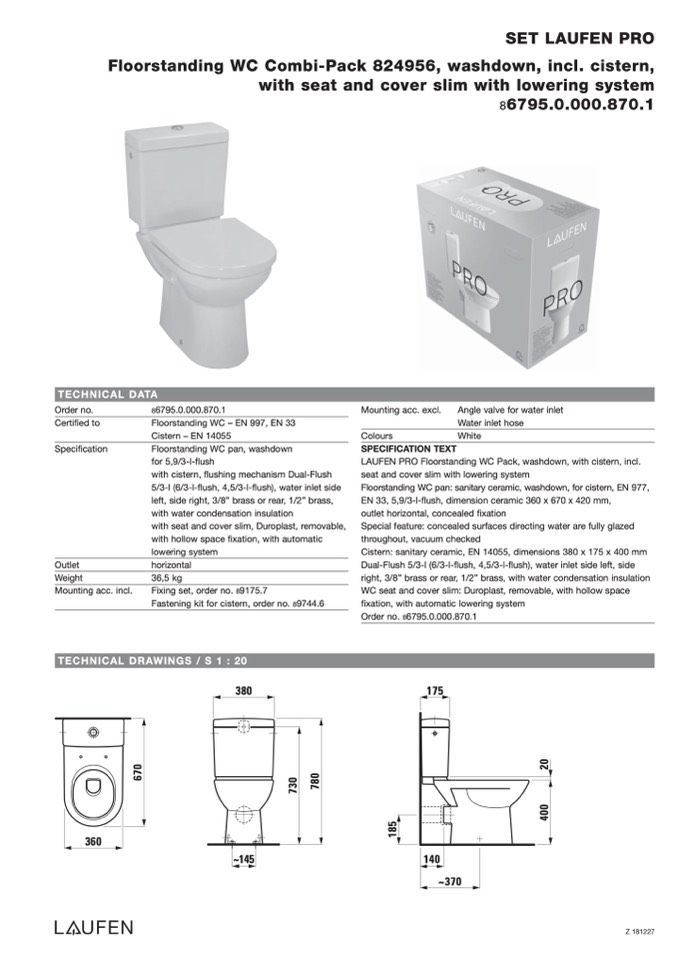

SET LAUFEN PRO

Floorstanding WC Combi-Pack 824956, washdown, incl. cistern,

with seat and cover slim with lowering system

86795.0.000.870.1

TECHNICAL DRAWINGS / S 1 : 20

LAUFEN PRO Floorstanding WC Pack, washdown, with cistern, incl.

seat and cover slim with lowering system

Floorstanding WC pan: sanitary ceramic, washdown, for cistern, EN 977,

EN 33, 5,9/3-l-flush, dimension ceramic 360 x 670 x 420 mm,

outlet horizontal, concealed fixation

Special feature: concealed surfaces directing water are fully glazed

throughout, vacuum checked

Cistern: sanitary ceramic, EN 14055, dimensions 380 x 175 x 400 mm

Dual-Flush 5/3-l (6/3-l-flush, 4,5/3-l-flush), water inlet side left, side

right, 3/8” brass or rear, 1/2” brass, with water condensation insulation

WC seat and cover slim: Duroplast, removable, with hollow space

fixation, with automatic lowering system

Order no. 86795.0.000.870.1

175

380

140

360

~145

~370

Z 181227

1

8

5

4

0

0

2

0

7

3

0

7

8

0

6

7

0
