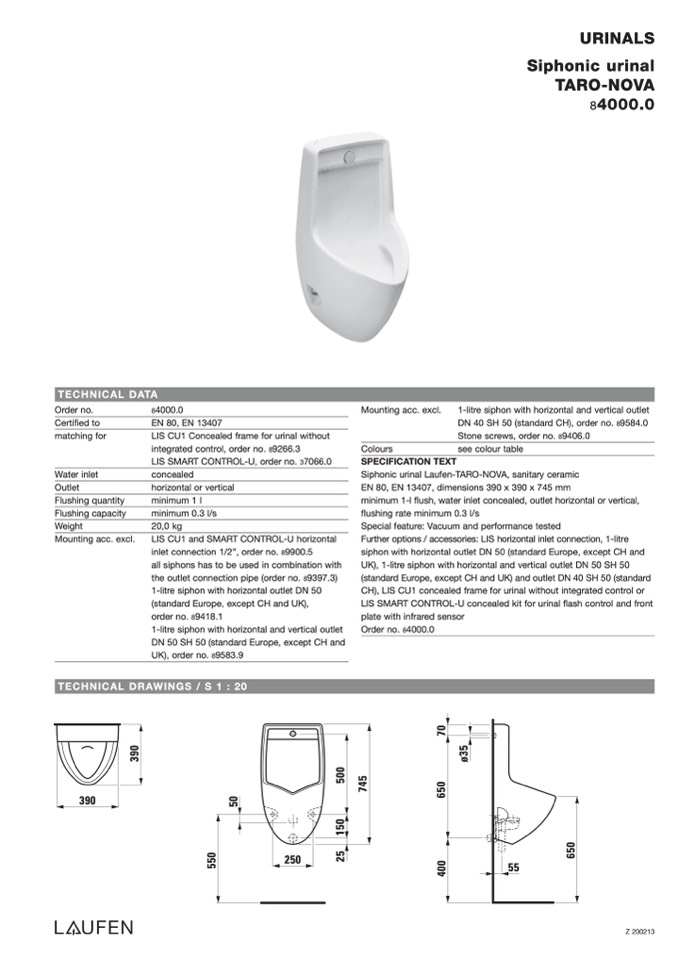

TECHNICAL DATA
Order no.
Certified to
matching for
Water inlet
Outlet
Flushing quantity
Flushing capacity
Weight
Mounting acc. excl.
8
4000.0
EN 80, EN 13407
LIS CU1 Concealed frame for urinal without
integrated control, order no. 89266.3
LIS SMART CONTROL-U, order no. 37066.0
concealed
horizontal or vertical
minimum 1 l
minimum 0.3 l/s
20,0 kg
LIS CU1 and SMART CONTROL-U horizontal
inlet connection 1/2”, order no. 89900.5
all siphons has to be used in combination with
the outlet connection pipe (order no. 89397.3)
1-litre siphon with horizontal outlet DN 50
(standard Europe, except CH and UK),
order no. 89418.1
1-litre siphon with horizontal and vertical outlet
DN 50 SH 50 (standard Europe, except CH and
UK), order no. 89583.9
Mounting acc. excl.
Colours
SPECIFICATION TEXT
1-litre siphon with horizontal and vertical outlet
DN 40 SH 50 (standard CH), order no. 89584.0
Stone screws, order no. 89406.0
see colour table
84000.0
Siphonic urinal Laufen-TARO-NOVA, sanitary ceramic
EN 80, EN 13407, dimensions 390 x 390 x 745 mm
minimum 1-l flush, water inlet concealed, outlet horizontal or vertical,
flushing rate minimum 0.3 l/s
Special feature: Vacuum and performance tested
Further options / accessories: LIS horizontal inlet connection, 1-litre
siphon with horizontal outlet DN 50 (standard Europe, except CH and
UK), 1-litre siphon with horizontal and vertical outlet DN 50 SH 50
(standard Europe, except CH and UK) and outlet DN 40 SH 50 (standard
CH), LIS CU1 concealed frame for urinal without integrated control or
LIS SMART CONTROL-U concealed kit for urinal flash control and front
plate with infrared sensor
Order no. 84000.0
TECHNICAL DRAWINGS / S 1 : 20
390
250
55
Z 200213
5
5
0
4
0
0
6
5
0
7
0
2
5
1
5
0
5
0
0
6
5
0
5
0
7
4
5
3
9
0
ø
3
5
