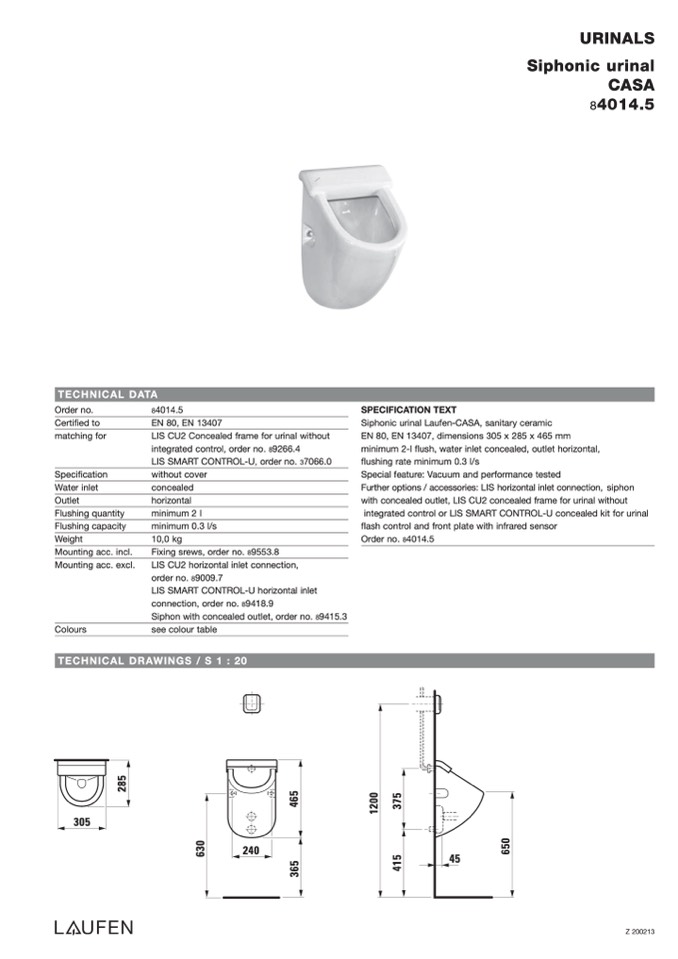

TECHNICAL DATA

Order no.

Certified to

matching for

Specification

Water inlet

Outlet

Flushing quantity

Flushing capacity

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

8

4014.5

EN 80, EN 13407

LIS CU2 Concealed frame for urinal without

integrated control, order no. 89266.4

LIS SMART CONTROL-U, order no. 37066.0

without cover

concealed

horizontal

minimum 2 l

minimum 0.3 l/s

10,0 kg

Fixing srews, order no. 89553.8

LIS CU2 horizontal inlet connection,

order no. 89009.7

LIS SMART CONTROL-U horizontal inlet

connection, order no. 89418.9

Siphon with concealed outlet, order no. 89415.3

see colour table

SPECIFICATION TEXT

URINALS

Siphonic urinal

CASA

84014.5

Siphonic urinal Laufen-CASA, sanitary ceramic

EN 80, EN 13407, dimensions 305 x 285 x 465 mm

minimum 2-l flush, water inlet concealed, outlet horizontal,

flushing rate minimum 0.3 l/s

Special feature: Vacuum and performance tested

Further options / accessories: LIS horizontal inlet connection, siphon

with concealed outlet, LIS CU2 concealed frame for urinal without

integrated control or LIS SMART CONTROL-U concealed kit for urinal

flash control and front plate with infrared sensor

Order no. 84014.5

TECHNICAL DRAWINGS / S 1 : 20

305

240

45

Z 200213

3

6

5

4

6

5

4

1

5

1

2

0

0

3

7

5

6

3

0

6

5

0

2

8

5
