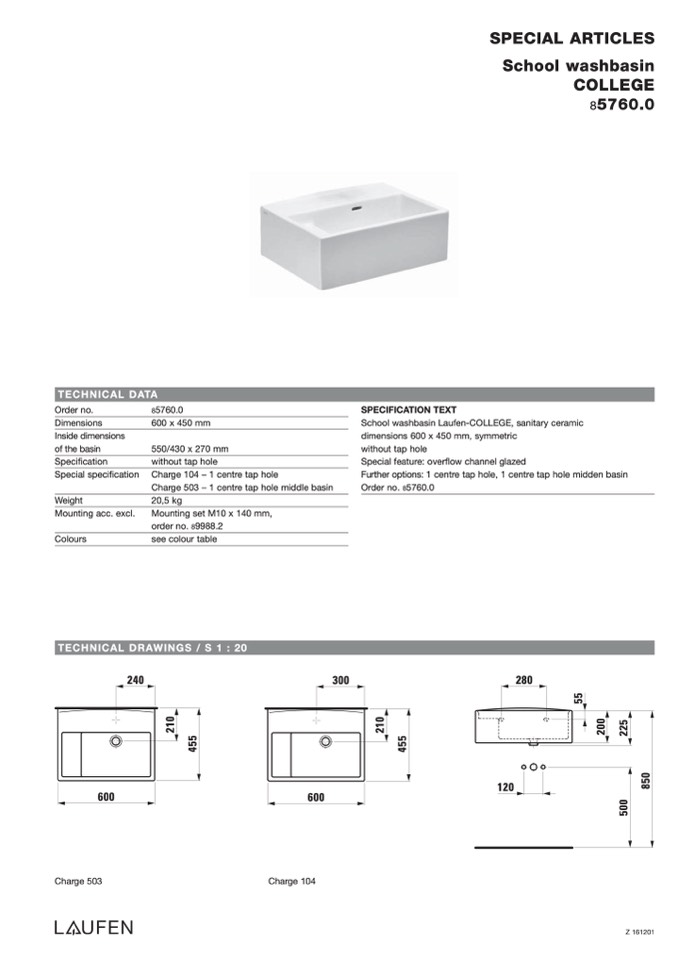

SPECIAL ARTICLES

School washbasin

COLLEGE

85760.0

TECHNICAL DATA

Order no.

Dimensions

Inside dimensions

of the basin

Specification

Special specification

Weight

Mounting acc. excl.

Colours

8

5760.0

600 x 450 mm

550/430 x 270 mm

without tap hole

Charge 104 – 1 centre tap hole

Charge 503 – 1 centre tap hole middle basin

20,5 kg

Mounting set M10 x 140 mm,

order no. 89988.2

see colour table

SPECIFICATION TEXT

School washbasin Laufen-COLLEGE, sanitary ceramic

dimensions 600 x 450 mm, symmetric

without tap hole

Special feature: overflow channel glazed

Further options: 1 centre tap hole, 1 centre tap hole midden basin

Order no. 85760.0

TECHNICAL DRAWINGS / S 1 : 20

240

300

280

600

600

120

Charge 503

Charge 104

Z 161201

5

0

0

2

2

5

8

5

0

2

1

0

4

5

5

2

1

0

4

5

5

5

5

2

0

0
