TECHNICAL DATA

Order no.

Certified to

matching for

Specifications

Other specifications

Water inlet

Outlet

Flow pressure range

Water temperature

Tank

8

9466.6

EN 14055

All LAUFEN wallhung toilets,

also suitable for LAUFEN wallhung shower

toilets

For mounting in front of a solid or drywall con-

struction, self-supporting, with frontal actuator,

with water condensation insulation.

Dual-Flush 4,5/3-l.

Flush valve with silicon seal.

Fill valve with anti-siphon system.

Galvanized leg supports, rotatable,

height-adjustable 0-200 mm.

Supporting frame made of steel profiles.

Capable to resist 400 kg

rear R 1/2”, brass

DN 90/110

0.5-10 bar

max. 25°C

Thickness 110 mm, material PP

Installation depth

Weight

Mounting acc. incl.

Mounting acc. excl.

Accessories excl.

Mounting information

Colours

140-195 mm

14,5 kg

Fastening set to floor and wall, WC connection

set, tiling set, protection caps (for WC connection

pipes) and protection tubes for M12 threaded

rods, angle valve 1/2”.

Sound insulation set, order no. 89269.6

Actuator plates dual flush, order no. 89566.1,

8

9566.2 (stainless steel)

Electronic actuator plate dual flush,

order no. 89566.3, 89566.4

Support bar for handle and holding systems,

order no. 89266.7, 89266.8

Please note the necessary wall thickness of 80 mm

in case of pre-wall installation. Height from

finished floor to top of WC pre-set to 400 mm,

adjustable between 390-450 mm.

System installation is also possible between

modular walls (plasterboard).

Surface powder coated blue

TECHNICAL DRAWINGS / S 1 : 20

500

180

397

63

R 1/2“

140-195 25-75

R 1/2“

73

73

48

1000

±0

0-200

±0

0-200

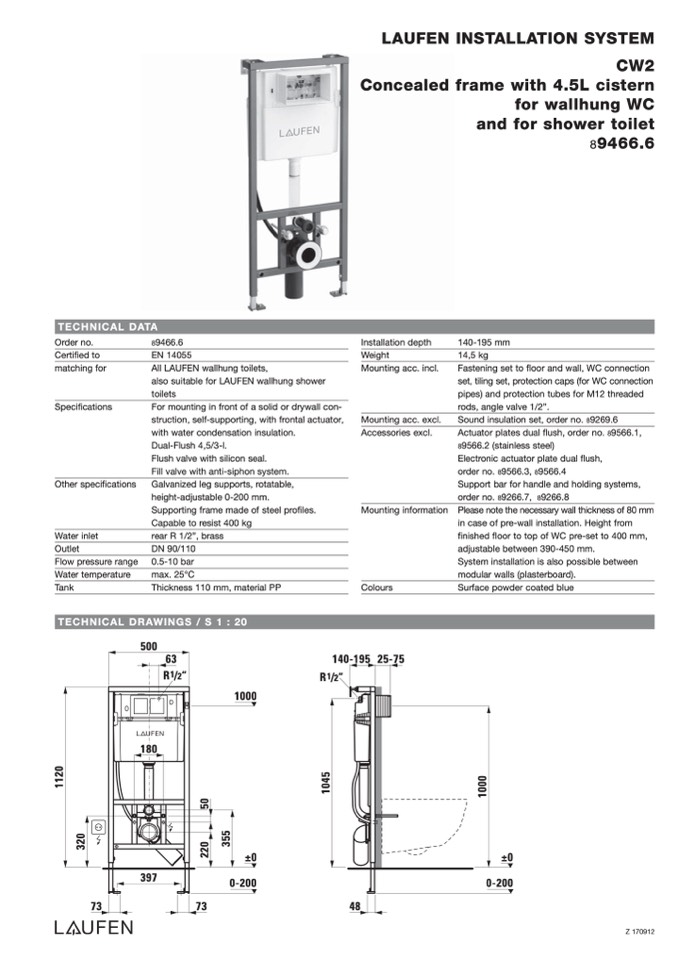

LAUFEN INSTALLATION SYSTEM

CW2

Concealed frame with 4.5L cistern

for wallhung WC

and for shower toilet

89466.6

3

2

0

2

2

0

5

0

3

5

5

1

1

2

0

1

0

4

5

1

0

0

0

Z 170912
