1. Fixing set

2. Elbow connection

3. Lip seal Ø 102 mm

8

9009.2

Floorstanding WC pan with horizontal outlet

Elbow connection set VARIO 70 - 220 mm

vertical 70 - 220 mm

1,3 kg

included

Order no.

matching for

Specification

Outlet

Weight

Mounting acc.

������������� ����

Elbow connection set LAUFEN VARIO

DIN 19542, for outlet vertical 70 - 220 mm

matching floorstanding WC pan with horizontal outlet

Order no. 89009.2

��������� �������� � � � � ��

max 300

min 105

180

ø 110

260

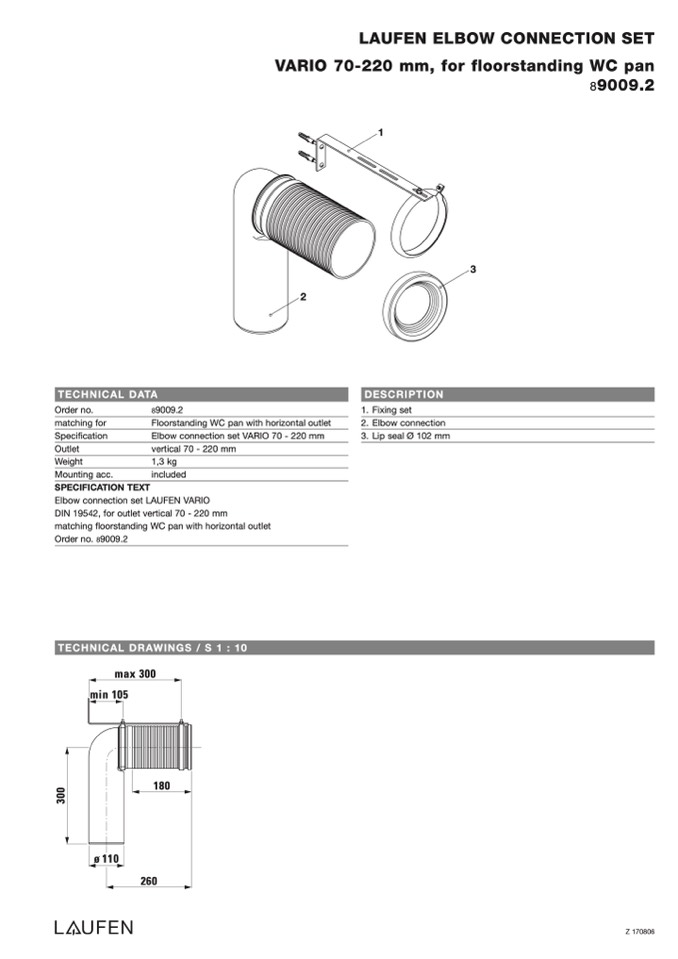

LAUFEN ELBOW CONNECTION SET

VARIO 70-220 mm, for floorstanding WC pan

2

1

3

89009.2

3

0

0
