TECHNICAL DATA

Order no.

Certified to

Dimensions

Hight

Depth

Use capacity

Specification

Special specification

Weight

2

2034.7

EN 14516 (EN 198), EN 232

1600 x 815 mm

535 mm

460 mm

270 litre (total: 340 litre)

Bathtub made of Sentec solid surface material

Back to wall version, with one piece panel

with integrated overflow

with click-clack waste and cover made of Sentec

without whirl system

Charge 000 – without drillings for roman tub filler

Charge 036 – with drillings for roman tub filler

5-holes

Kartell by Laufen, order no. 32233.5.004.282.1

Curveprime, order no. 32270.5.904.384.1

112,0 kg

Accessories excl.

Mounting acc. incl.

Otherwise

Colours

Backrest, order no. 29234.0

Bath tray, order no. 29334.0

click-clack waste with cover made of Sentec,

order no. 29144.1

Flex-pipe 1m, order no. 29443.9

When ordering the version with drillings use

the order form for bathtubs with drilling for

roman tub filler.

000 – White

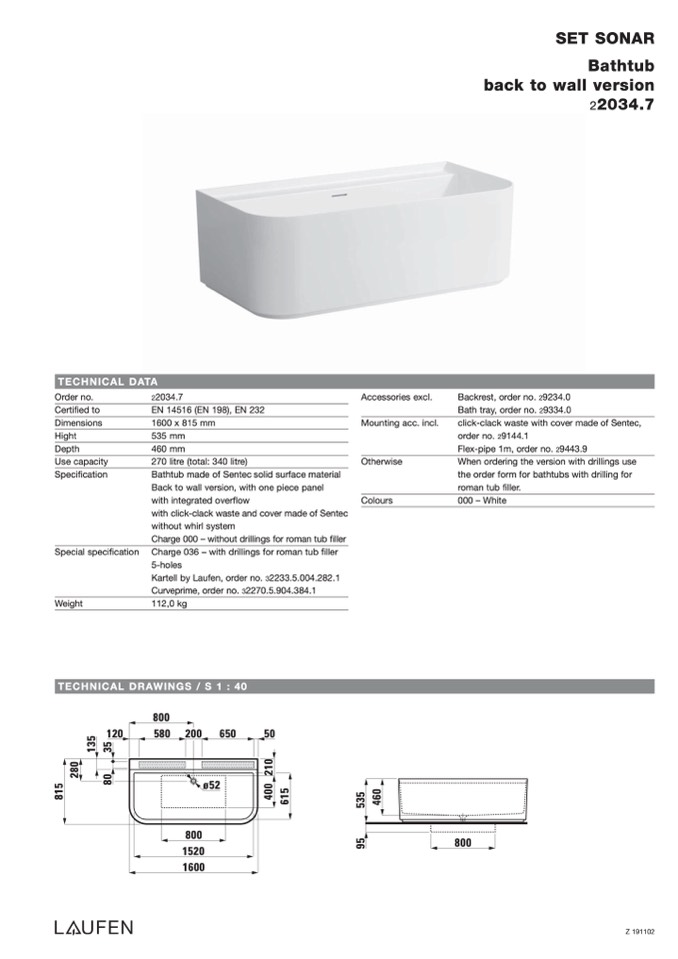

SET SONAR

Bathtub

back to wall version

22034.7

TECHNICAL DRAWINGS / S 1 : 40

800

120

580

200

650

50

ø52

1520

800

800

1600

Z 191102
