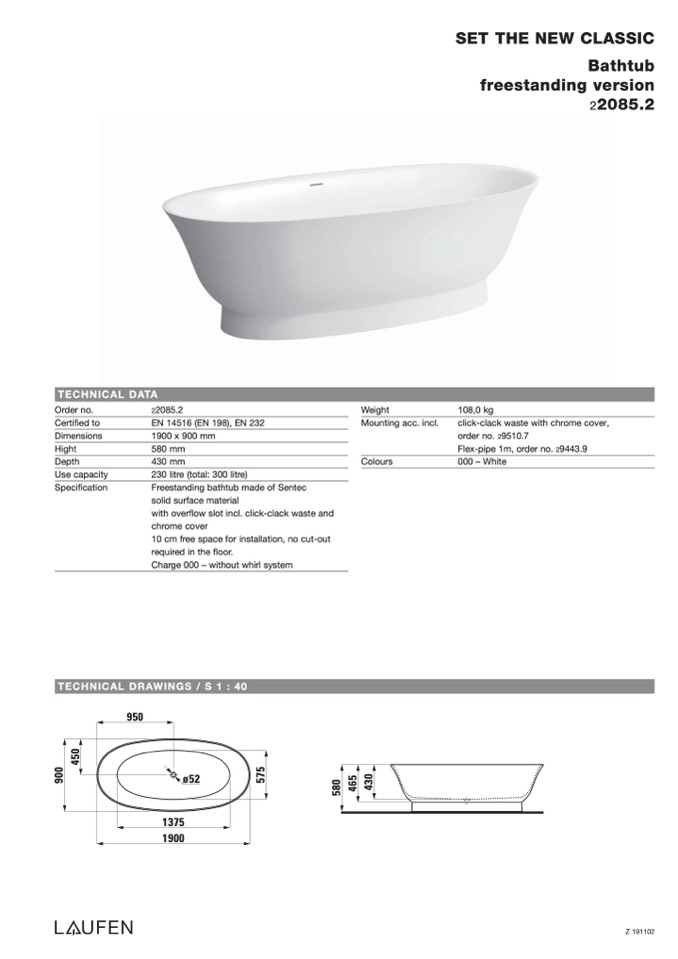

TECHNICAL DATA
Order no.
Certified to
Dimensions
Hight
Depth
Use capacity
Specification
2
2085.2
EN 14516 (EN 198), EN 232
1900 x 900 mm
580 mm
430 mm
230 litre (total: 300 litre)
Freestanding bathtub made of Sentec
solid surface material
with overflow slot incl. click-clack waste and
chrome cover
10 cm free space for installation, no cut-out
required in the floor.
Charge 000 – without whirl system
Weight
Mounting acc. incl.
Colours
108,0 kg
click-clack waste with chrome cover,
order no. 29510.7
Flex-pipe 1m, order no. 29443.9
000 – White
22085.2
TECHNICAL DRAWINGS / S 1 : 40
950
1375
ø52
1900
Z 191102
