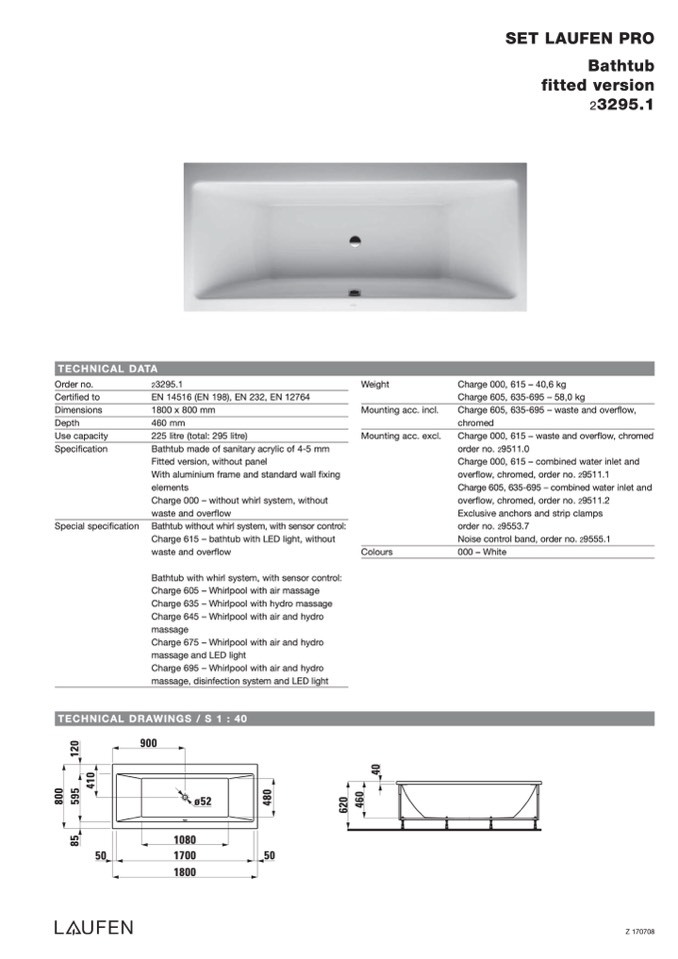

TECHNICAL DATA

Order no.

Certified to

Dimensions

Depth

Use capacity

Specification

Special specification

2

3295.1

EN 14516 (EN 198), EN 232, EN 12764

1800 x 800 mm

460 mm

225 litre (total: 295 litre)

Bathtub made of sanitary acrylic of 4-5 mm

Fitted version, without panel

With aluminium frame and standard wall fixing

elements

Charge 000 – without whirl system, without

waste and overflow

Bathtub without whirl system, with sensor control:

Charge 615 – bathtub with LED light, without

waste and overflow

Bathtub with whirl system, with sensor control:

Weight

Mounting acc. incl.

Mounting acc. excl.

Colours

Charge 000, 615 – 40,6 kg

Charge 605, 635-695 – 58,0 kg

Charge 605, 635-695 – waste and overflow,

chromed

Charge 000, 615 – waste and overflow, chromed

order no. 29511.0

Charge 000, 615 – combined water inlet and

overflow, chromed, order no. 29511.1

Charge 605, 635-695 – combined water inlet and

overflow, chromed, order no. 29511.2

Exclusive anchors and strip clamps

order no. 29553.7

Noise control band, order no. 29555.1

000 – White

50

1080

1700

50

1800

900

Charge 605 – Whirlpool

Charge 635 – Whirlpool

Charge 645 – Whirlpool

massage

with air massage

with hydro massage

with air and hydro

Charge 675 – Whirlpool

massage and LED light

Charge 695 – Whirlpool

massage, disinfection system and LED light

TECHNICAL DRAWINGS / S 1 : 40

ø52

with air and hydro

with air and hydro

SET LAUFEN PRO

Bathtub

fitted version

23295.1

8

5

8

0

0

5

9

5

1

2

0

4

8

0

6

2

0

4

6

0

4

1

0

4

0

Z 170708
