Order no.

Certified to

Dimensions

Depth

Use capacity

Specification

eight

2

2551.2

EN 14516 (EN 198), EN 232, EN 12764

1900 x 900 mm

480 mm

230 litre (total: 300 litre)

Bathtub made of sanitary acrylic of 4-5 mm

Freestanding version, with one piece panel

With aluminium frame

Charge 000 – without whirl system, without

waste and overflow

48,0 kg

Mounting acc. excl.

Colours

Waste and overflow, chromed

order no. 29511.0

Combined water inlet and overflow, chromed,

order no. 29511.1

000 – White

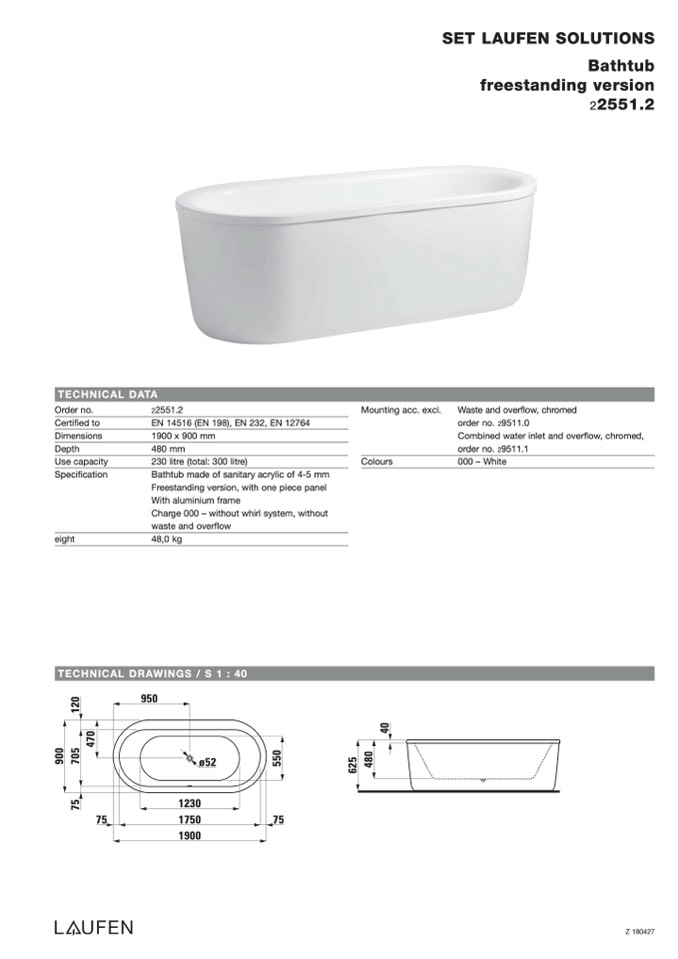

SET LAUFEN SOLUTIONS

Bathtub

freestanding version

22551.2

TECHNICAL DATA

TECHNICAL DRAWINGS / S 1 : 40

950

ø52

1230

75

75

1750

1900

Z 180427
