TECHNICAL DATA

Order no.

Certified to

Dimensions

Depth

Specification

Weight

2

1550.7

EN 14527 (EN 249), EN 251

1700 x 800 mm

45 mm

Rectangular shower tray made of sanitary

acrylic of 4-5 mm

24,0 kg

Mounting acc. excl.

Colours

Feet for shower tray, order no. 29555.8

Waste Ø 90 mm, order no. 29512.0

Waste cover stainless steel, order no. 29512.4

Exclusive anchors and strip clamps

order no. 29553.7

Noise control band, order no. 29555.1

000 – White

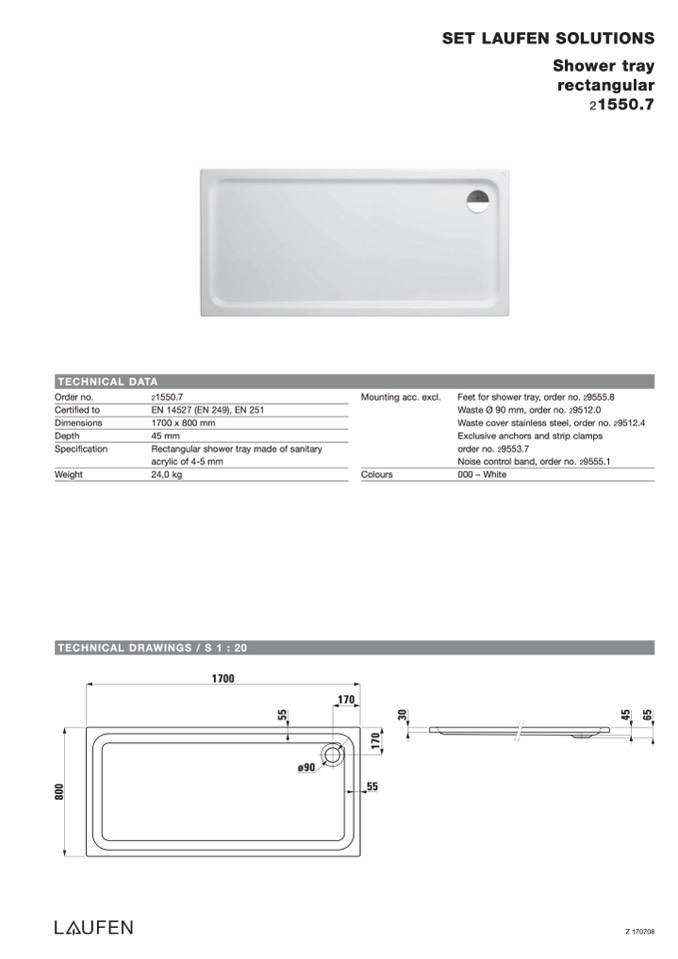

SET LAUFEN SOLUTIONS

Shower tray

rectangular

21550.7

TECHNICAL DRAWINGS / S 1 : 20

1700

170

ø90

55

Z 170708

8

0

0

1

7

0

3

0

5

5

4

5

6

5
