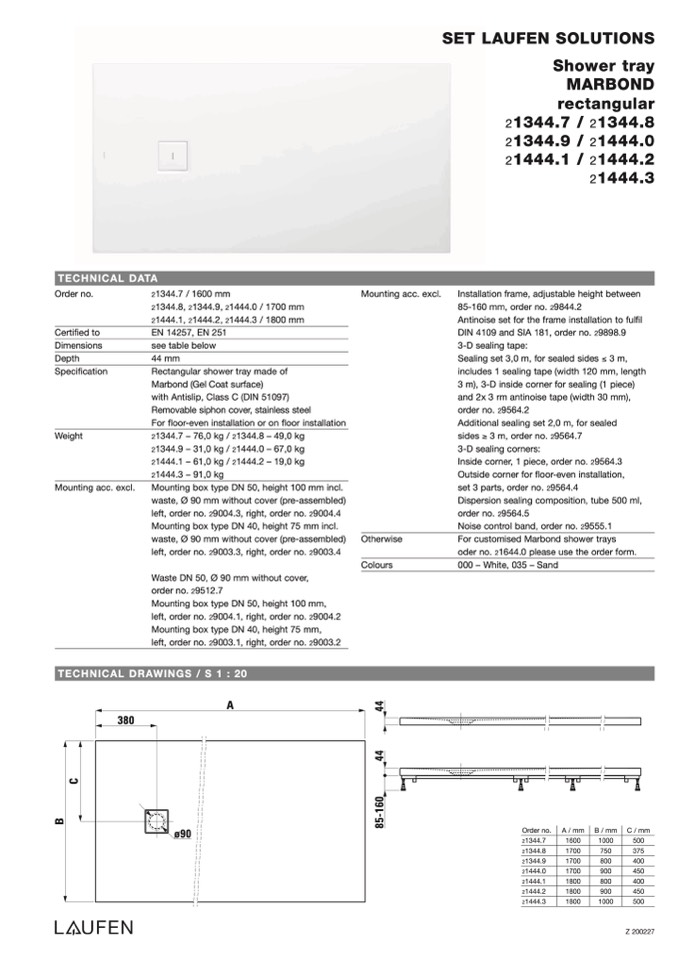

TECHNICAL DATA

SET LAUFEN SOLUTIONS

Shower tray

MARBOND

rectangular

21344.7 / 21344.8

21344.9 / 21444.0

21444.1 / 21444.2

21444.3

Installation frame, adjustable height between

85-160 mm, order no. 29844.2

Antinoise set for the frame installation to fulfil

DIN 4109 and SIA 181, order no. 29898.9

3-D sealing tape:

Sealing set 3,0 m, for sealed sides � 3 m,

includes 1 sealing tape (width 120 mm, length

3 m), 3-D inside corner for sealing (1 piece)

and 2x 3 rm antinoise tape (width 30 mm),

order no. 29564.2

Additional sealing set 2,0 m, for sealed

sides � 3 m, order no. 29564.7

3-D sealing corners:

Inside corner, 1 piece, order no. 29564.3

Outside corner for floor-even installation,

set 3 parts, order no. 29564.4

Dispersion sealing composition, tube 500 ml,

order no. 29564.5

Noise control band, order no. 29555.1

For customised Marbond shower trays

oder no. 21644.0 please use the order form.

000 – White, 035 – Sand

Order no.

Certified to

Dimensions

Depth

Specification

Weight

Mounting acc. excl.

2

1344.7 / 1600 mm

2

1344.8, 21344.9, 21444.0 / 1700 mm

2

1444.1, 21444.2, 21444.3 / 1800 mm

EN 14257, EN 251

see table below

44 mm

Rectangular shower tray made of

Marbond (Gel Coat surface)

with Antislip, Class C (DIN 51097)

Removable siphon cover, stainless steel

For floor-even installation or on floor installation

2

1344.7 – 76,0 kg / 21344.8 – 49,0 kg

2

1344.9 – 31,0 kg / 21444.0 – 67,0 kg

2

1444.1 – 61,0 kg / 21444.2 – 19,0 kg

2

1444.3 – 91,0 kg

Mounting box type DN 50, height 100 mm incl.

waste, Ø 90 mm without cover (pre-assembled)

left, order no. 29004.3, right, order no. 29004.4

Mounting box type DN 40, height 75 mm incl.

waste, Ø 90 mm without cover (pre-assembled)

left, order no. 29003.3, right, order no. 29003.4

Waste DN 50, Ø 90 mm without cover,

order no. 29512.7

Mounting box type DN 50, height 100 mm,

left, order no. 29004.1, right, order no. 29004.2

Mounting box type DN 40, height 75 mm,

left, order no. 29003.1, right, order no. 29003.2

Mounting acc. excl.

Otherwise

Colours

TECHNICAL DRAWINGS / S 1 : 20

A

380

ø90

Order no.

2

1344.7

2

1344.8

2

1344.9

2

1444.0

2

1444.1

2

1444.2

2

1444.3

A / mm

B / mm

C / mm

500

375

400

450

400

450

500

1600

1000

1700

750

1700

800

1700

900

1800

800

1800

900

1800

1000

Z 200227

B

C

8

5

-

1

6

0

4

4

4

4
