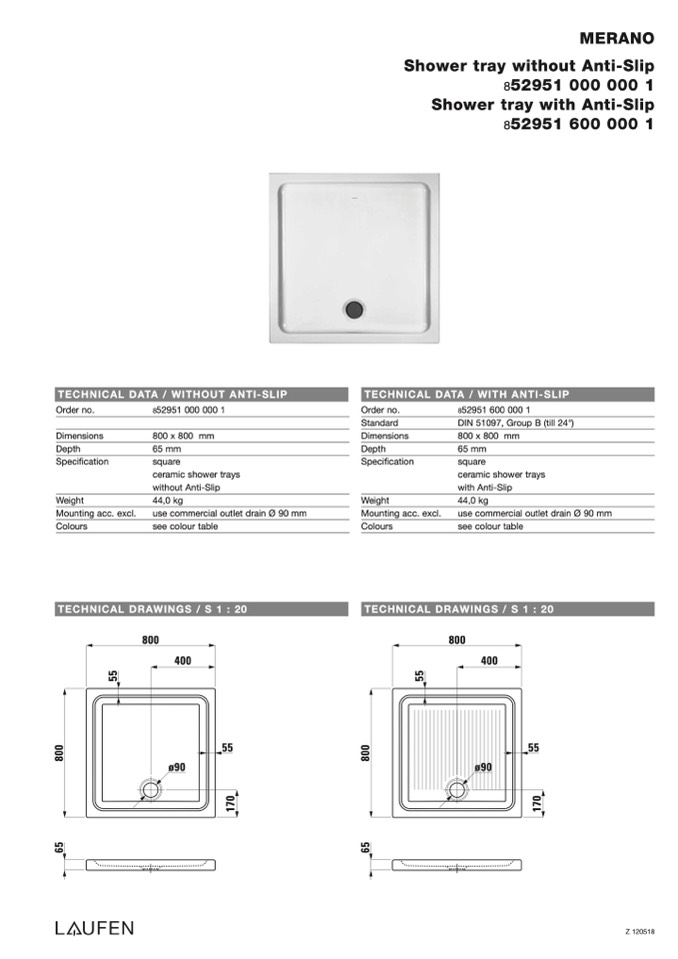

MERANO

Shower tray without Anti-Slip

852951 000 000 1

Shower tray with Anti-Slip

852951 600 000 1

TECHNICAL DATA / WITHOUT ANTI-SLIP

TECHNICAL DATA / WITH ANTI-SLIP

Order no.

Dimensions

Depth

Specification

Weight

Mounting acc. excl.

Colours

8

52951 000 000 1

800 x 800 mm

65 mm

square

ceramic shower trays

without Anti-Slip

44,0 kg

use commercial outlet drain Ø 90 mm

see colour table

Order no.

Standard

Dimensions

Depth

Specification

Weight

Mounting acc. excl.

Colours

8

52951 600 000 1

DIN 51097, Group B (till 24°)

800 x 800 mm

65 mm

square

ceramic shower trays

with Anti-Slip

44,0 kg

use commercial outlet drain Ø 90 mm

see colour table

TECHNICAL DRAWINGS / S 1 : 20

800

400

TECHNICAL DRAWINGS / S 1 : 20

800

400

ø90

55

55

ø90

Z 120518
