TECHNICAL DATA

Order no.

Dimensions (WxHxD)

Matching for

Specification

Weight

4

0540.5 / 1 drawer

577 x 341 x 457 mm

Washbasin bowl, order no. 81234.0, 81234.1,

8

1234.2, 81234.3

Body/Front – particle board, inside melamine

dark grey

on the outsides MDF panels 6 mm, lacquered

Top – ceramic stoneware with marble optic

with 6 mm top

1 cut out

1 drilled tap hole

1 push and pull full extension drawer

26,0 kg

Accessories excl.

Mounting acc. incl.

Mounting information

Colours

Space saving siphon, order no. 89424.0

Installation set for furniture, order no. 491114.0,

4

9301.5

The walls installed on must meet the require-

ments of the furniture in terms of weight and

the supplied fastening elements. If this cannot

be guaranteed another method of installation

needs to be chosen.

140 – Gold / Nero marquina (ceramic top)

141 – Copper / Nero marquina (ceramic top)

142 – Titanium / Nero marquina (ceramic top)

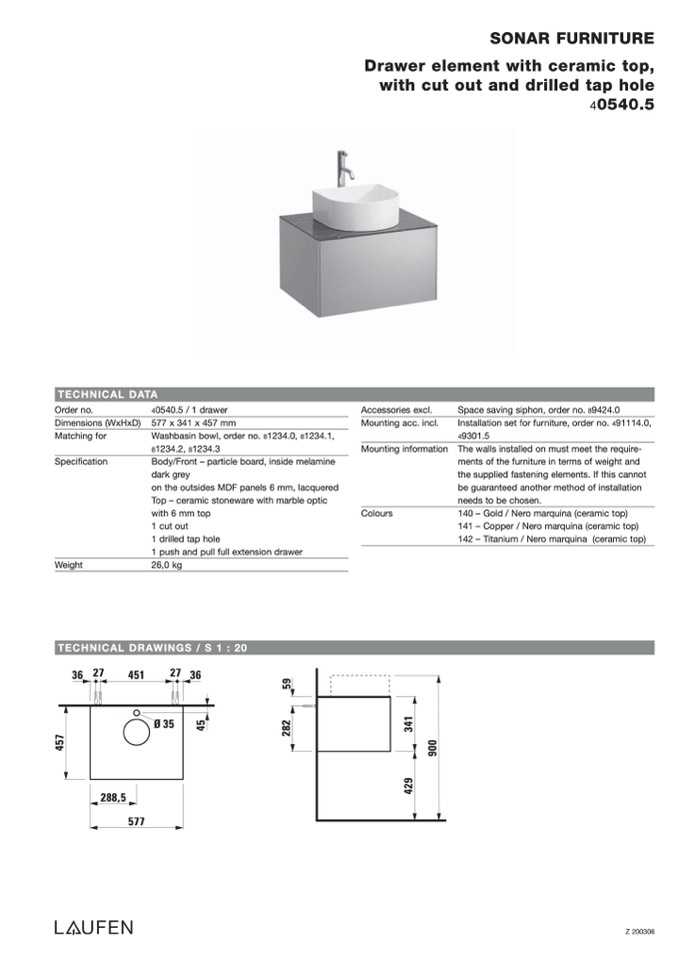

SONAR FURNITURE

Drawer element with ceramic top,

with cut out and drilled tap hole

40540.5

TECHNICAL DRAWINGS / S 1 : 20

36 27

451

27 36

288,5

Ø35

577

Z 200306

4

2

9

3

4

1

4

5

7

9

0

0

4

5

2

8

2

5

9
