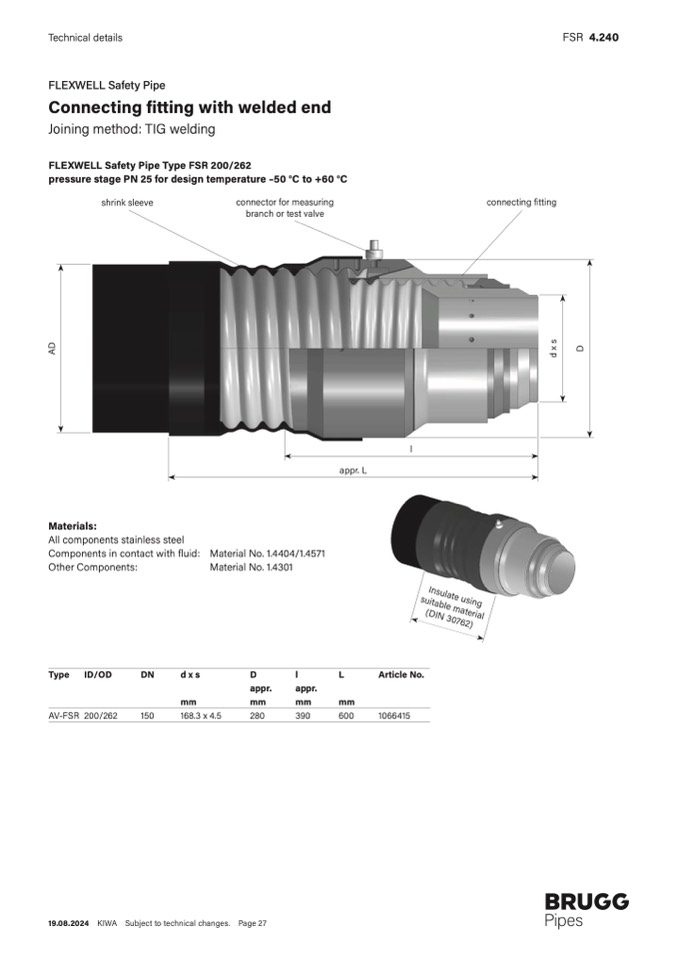

Technical details

FSR 4.240

FLEXWELL Safety Pipe

Connecting fitting with welded end

Joining method: TIG welding

FLEXWELL Safety Pipe Type FSR 200/262

pressure stage PN 25 for design temperature –50 °C to +60 °C

Materials:

shrink sleeve

connector for measuring

branch or test valve

connecting fitting

All components stainless steel

Components in contact with fluid:

Other Components:

Type ID/OD

AV-FSR 200/262

DN

150

Material No. 1.4404/1.4571

Material No. 1.4301

d x s

mm

mm

mm

mm

168.3 x 4.5

280

390

600

Article No.

1066415

19.08.2024 KIWA

Subject to technical changes. Page 27

D

l

L

appr.

appr.

l

appr. L

A

D

d

x

s

D

Insulate using

suitable material

(DIN 30762)
