Technical details

FLEXWELL Safety Pipe

Fluid engineering

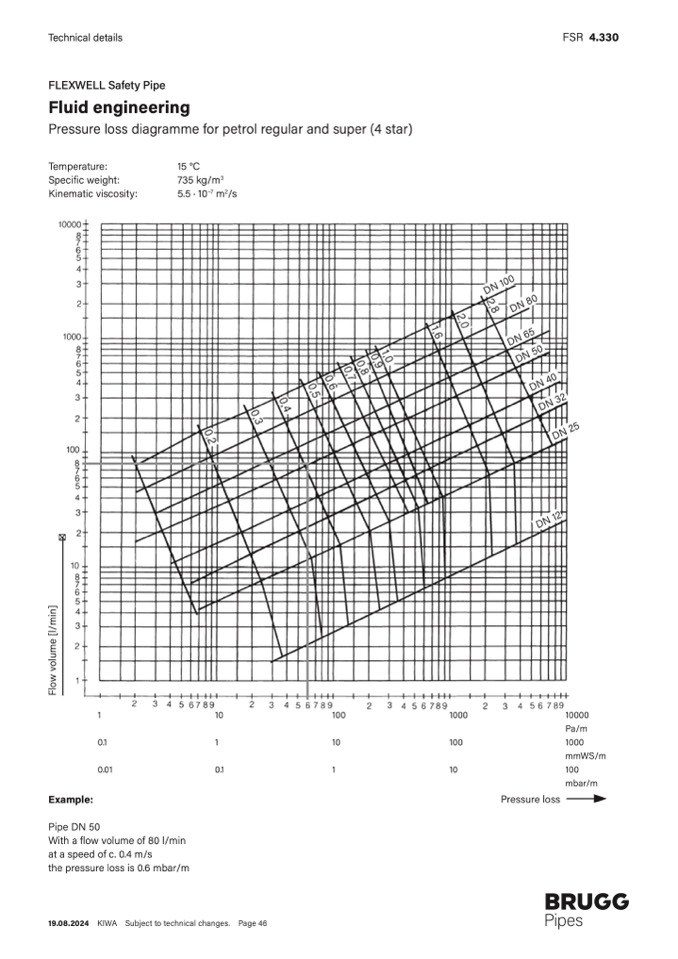

Pressure loss diagramme for petrol regular and super (4 star)

FSR 4.330

Temperature:

Specific weight:

Kinematic viscosity:

15 °C

735 kg/m

3

5.5 · 10

–7

m

2

/s

1

0.1

0.01

Example:

10

1

0.1

100

10

1

1000

10000

Pa/m

100

1000

mmWS/m

10

100

mbar/m

Pressure loss

Pipe DN 50

With a flow volume of 80 l/min

at a speed of c. 0.4 m/s

the pressure loss is 0.6 mbar/m
