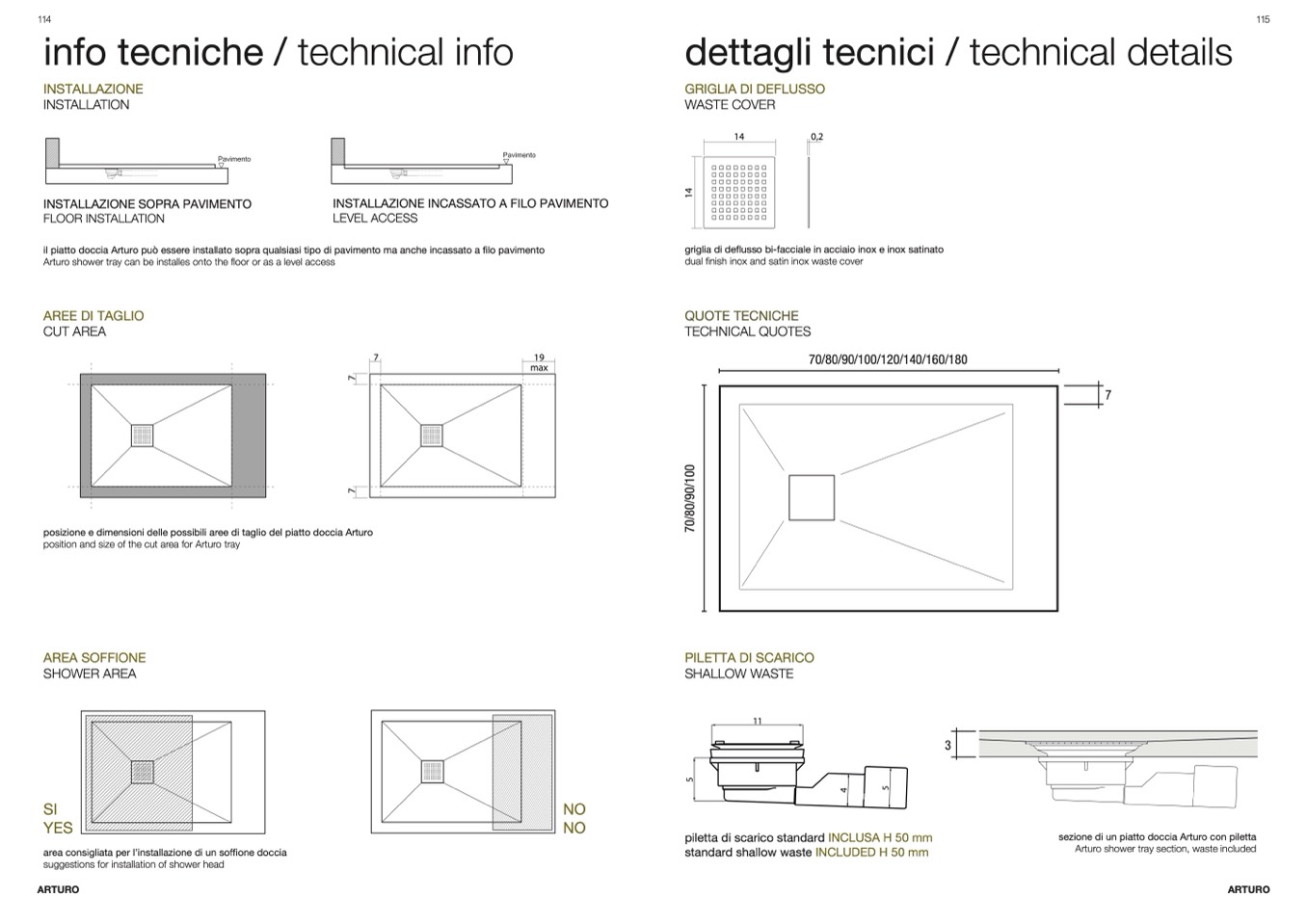

info tecniche / technical info

115

INSTALLAZIONE

INSTALLATION

INSTALLAZIONE SOPRA PAVIMENTO

FLOOR INSTALLATION

dettagli tecnici / technical details

GRIGLIA DI DEFLUSSO

il piatto doccia Arturo può essere installato sopra qualsiasi tipo di pavimento ma anche incassato a

filo pavimento

Arturo shower tray can be installes onto the

floor or as a level access

AREE DI TAGLIO

CUT AREA

posizione e dimensioni delle possibili aree di taglio del piatto doccia Arturo

position and size of the cut area for Arturo tray

AREA SOFFIONE

SHOWER AREA

PILETTA DI SCARICO

SHALLOW WASTE

11

area consigliata per l’installazione di un sof

fione doccia

suggestions for installation of shower head

piletta di scarico standard INCLUSA H 50 mm

standard shallow waste INCLUDED H 50 mm

sezione di un piatto doccia Arturo con piletta

Arturo shower tray section, waste included

ARTURO

ARTURO

INSTALLAZIONE INCASSATO A FILO PAVIMENTO

LEVEL ACCESS

WASTE COVER

griglia di de

flusso bi-facciale in acciaio inox e inox satinato

dual

finish inox and satin inox waste cover

QUOTE TECNICHE

TECHNICAL QUOTES

70/80/90/100/120/140/160/180

3

7

14

0,2

7

19

max

7

7

SI

YES

NO

NO

5

4

5

7

0

/

8

0

/

9

0

/

1

0

0

1

4
