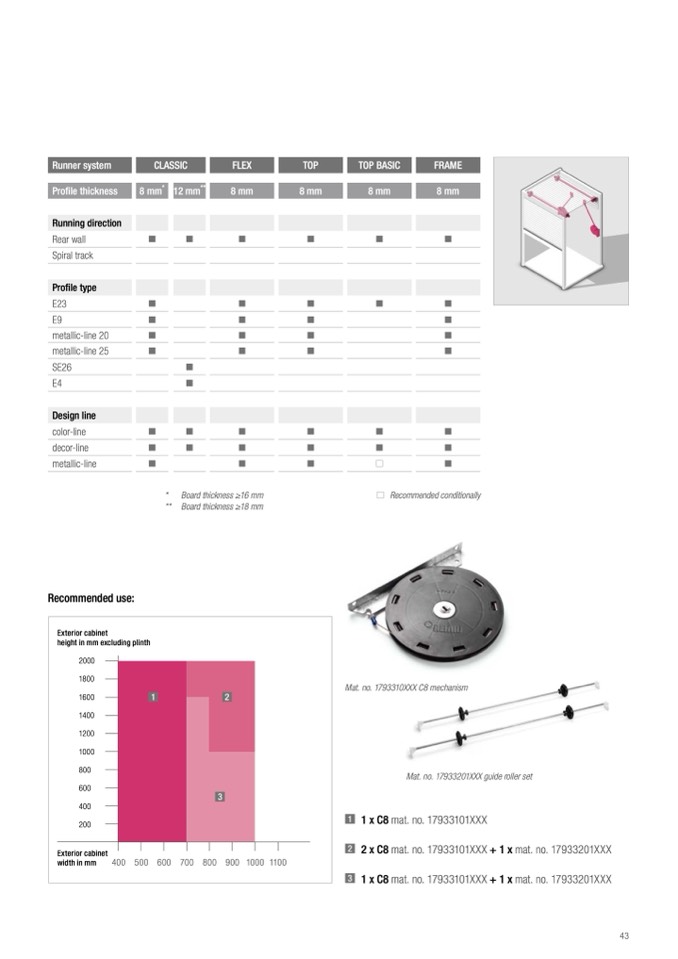

Runner system
CLASSIC
FLEX
TOP
TOP BASIC
FRAME
Profile thickness
8 mm
*
12 mm
**
8 mm
8 mm
8 mm
8 mm
Running direction
Rear wall
Spiral track
E23
E9
metallic-line 20
metallic-line 25
SE26
E4
color-line
decor-line
metallic-line
Recommended use:
* Board thickness ≥16 mm
** Board thickness ≥18 mm
Recommended conditionally
Mat. no. 1793310XXX C8 mechanism
Mat. no. 17933201XXX guide roller set
1 x C8 mat. no. 17933101XXX
2 x C8 mat. no. 17933101XXX + 1 x mat. no. 17933201XXX
1 x C8 mat. no. 17933101XXX + 1 x mat. no. 17933201XXX
Profile type
Design line
Exterior cabinet
height in mm excluding plinth
2000
1800
1600
1400
1200
1000
800
600
400
200
Exterior cabinet
width in mm
400 500 600 700
800 900
1000 1100
43
