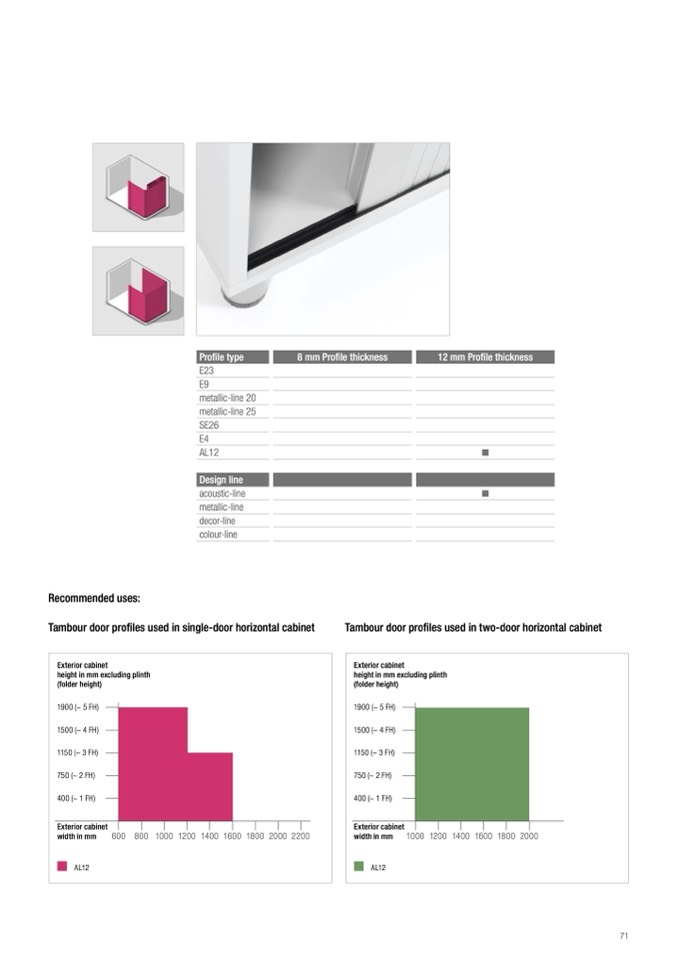

Profile type
8 mm Profile thickness
12 mm Profile thickness
E23
E9
metallic-line 20
metallic-line 25
SE26
E4
AL12
acoustic-line
metallic-line
decor-line
colour-line
Design line
Recommended uses:
Tambour door profiles used in single-door horizontal cabinet
Tambour door profiles used in two-door horizontal cabinet
Exterior cabinet
height in mm excluding plinth
(folder height)
1900 (~ 5 FH)
1500 (~ 4 FH)
1150 (~ 3 FH)
750 (~ 2 FH)
400 (~ 1 FH)
Exterior cabinet
width in mm
600 800 1000 1200 1400 1600 1800 2000 2200
AL12
Exterior cabinet
height in mm excluding plinth
(folder height)
1900 (~ 5 FH)
1500 (~ 4 FH)
1150 (~ 3 FH)
750 (~ 2 FH)
400 (~ 1 FH)
Exterior cabinet
width in mm
1000 1200 1400 1600 1800 2000
AL12
71
