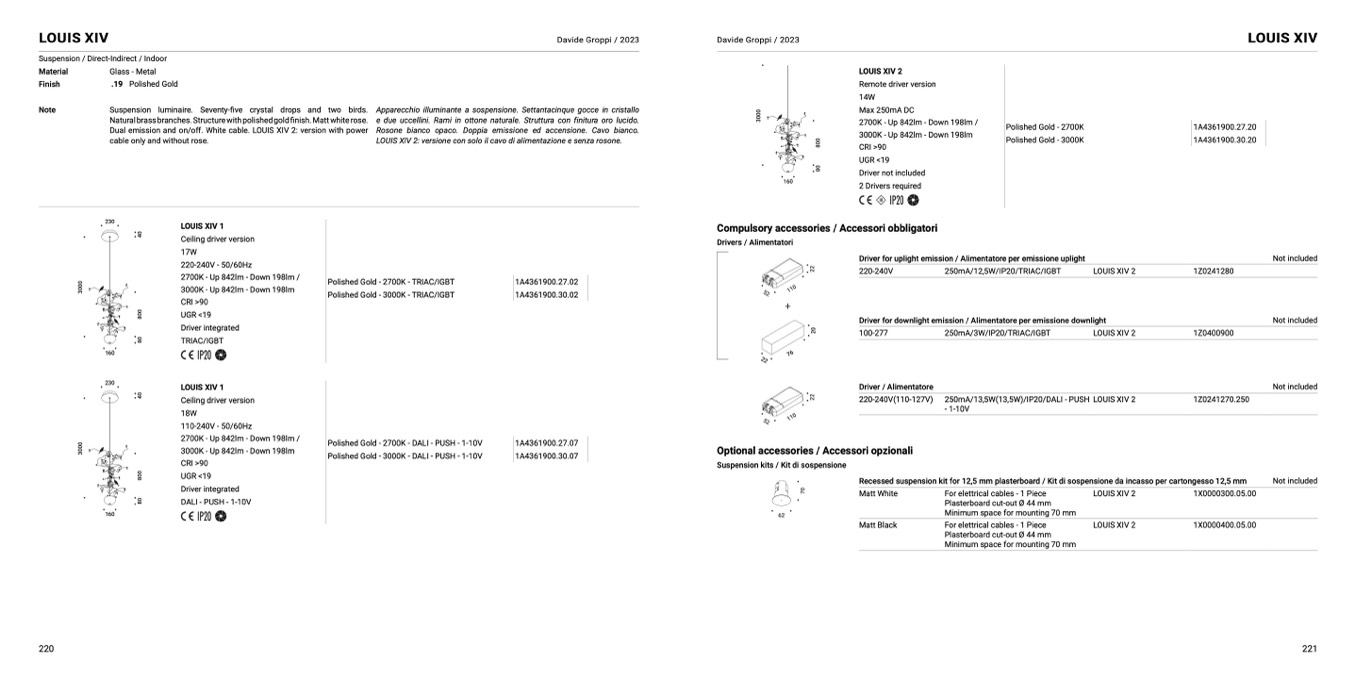

LOUIS XIV

Suspension / Direct-Indirect / Indoor

Davide Groppi / 2023

Davide Groppi / 2023

LOUIS XIV

Material

Finish

Note

Glass - Metal

.19 Polished Gold

Suspension luminaire. Seventy-five crystal drops and two birds. Apparecchio illuminante a sospensione. Settantacinque gocce in cristallo

LOUIS XIV 2

Remote driver version

14W

Max 250mA DC

2700K - Up 842lm - Down 198lm /

3000K - Up 842lm - Down 198lm

CRI >90

UGR <19

Driver not included

2 Drivers required

Compulsory accessories / Accessori obbligatori

Naturalbrassbranches.Structurewithpolishedgoldfinish.Mattwhiterose.

Dual emission and on/off. White cable. LOUIS XIV 2: version with power

cable only and without rose.

LOUIS XIV 1

Ceiling driver version

17W

220-240V - 50/60Hz

2700K - Up 842lm - Down 198lm /

3000K - Up 842lm - Down 198lm

CRI >90

UGR <19

Driver integrated

TRIAC/IGBT

LOUIS XIV 1

Ceiling driver version

18W

110-240V - 50/60Hz

2700K - Up 842lm - Down 198lm /

3000K - Up 842lm - Down 198lm

CRI >90

UGR <19

Driver integrated

DALI - PUSH - 1-10V

e due uccellini. Rami in ottone naturale. Struttura con finitura oro lucido.

Rosone bianco opaco. Doppia emissione ed accensione. Cavo bianco.

LOUIS XIV 2: versione con solo il cavo di alimentazione e senza rosone.

Polished Gold - 2700K

Polished Gold - 3000K

1A4361900.27.20

1A4361900.30.20

Drivers / Alimentatori

+

Driver for uplight emission / Alimentatore per emissione uplight

Not included

Not included

Not included

Not included

220-240V

250mA/12,5W/IP20/TRIAC/IGBT

LOUIS XIV 2

1Z0241280

1Z0400900

1Z0241270.250

Polished Gold - 2700K - TRIAC/IGBT

Polished Gold - 3000K - TRIAC/IGBT

1A4361900.27.02

1A4361900.30.02

Driver for downlight emission / Alimentatore per emissione downlight

100-277

Driver / Alimentatore

220-240V(110-127V)

250mA/3W/IP20/TRIAC/IGBT

LOUIS XIV 2

250mA/13,5W(13,5W)/IP20/DALI - PUSH LOUIS XIV 2

- 1-10V

Polished Gold - 2700K - DALI - PUSH - 1-10V

Polished Gold - 3000K - DALI - PUSH - 1-10V

1A4361900.27.07

1A4361900.30.07

Optional accessories / Accessori opzionali

Suspension kits / Kit di sospensione

Recessed suspension kit for 12,5 mm plasterboard / Kit di sospensione da incasso per cartongesso 12,5 mm

Matt White

Matt Black

For elettrical cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

For elettrical cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

LOUIS XIV 2

LOUIS XIV 2

1X0000300.05.00

1X0000400.05.00

220

221
