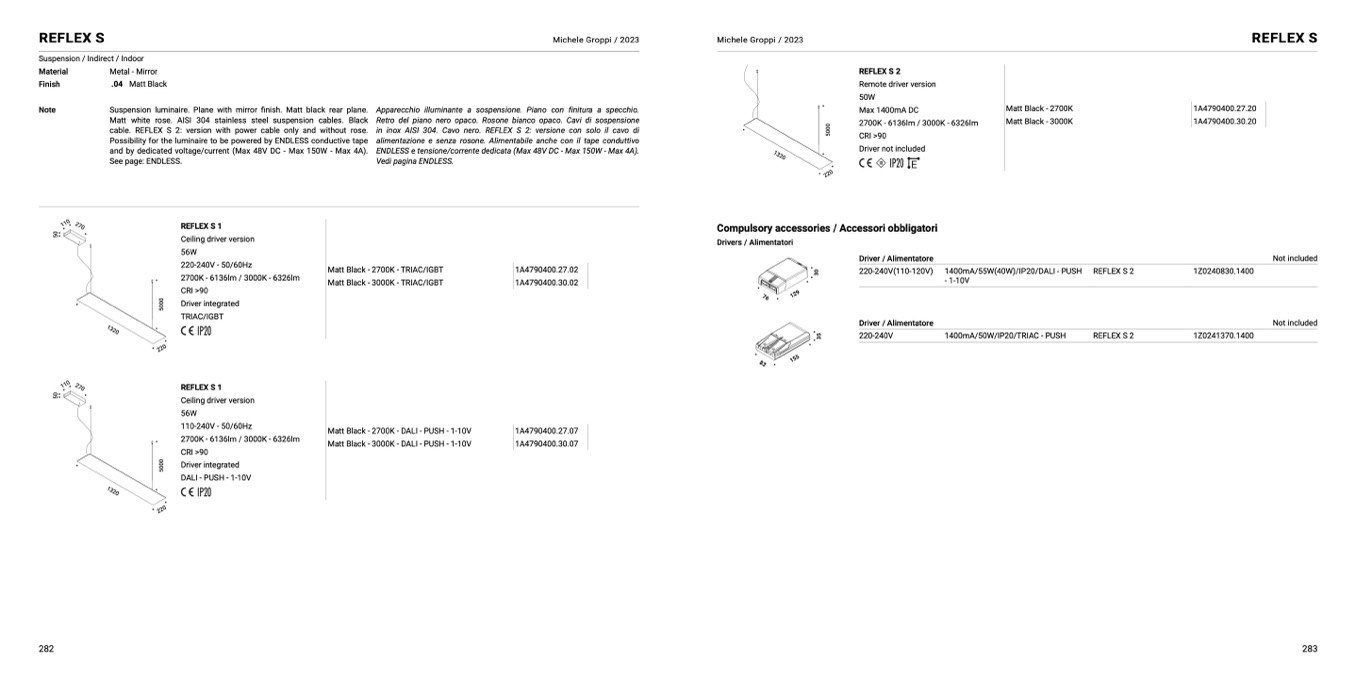

REFLEX S

Suspension / Indirect / Indoor

Michele Groppi / 2023

Michele Groppi / 2023

REFLEX S

Material

Finish

Note

Metal - Mirror

.04 Matt Black

Suspension luminaire. Plane with mirror finish. Matt black rear plane.

Matt white rose. AISI 304 stainless steel suspension cables. Black

cable. REFLEX S 2: version with power cable only and without rose.

Possibility for the luminaire to be powered by ENDLESS conductive tape

and by dedicated voltage/current (Max 48V DC - Max 150W - Max 4A).

See page: ENDLESS.

REFLEX S 1

Ceiling driver version

56W

220-240V - 50/60Hz

2700K - 6136lm / 3000K - 6326lm

CRI >90

Driver integrated

TRIAC/IGBT

REFLEX S 1

Ceiling driver version

56W

110-240V - 50/60Hz

2700K - 6136lm / 3000K - 6326lm

CRI >90

Driver integrated

DALI - PUSH - 1-10V

Apparecchio illuminante a sospensione. Piano con finitura a specchio.

Retro del piano nero opaco. Rosone bianco opaco. Cavi di sospensione

in inox AISI 304. Cavo nero. REFLEX S 2: versione con solo il cavo di

alimentazione e senza rosone. Alimentabile anche con il tape conduttivo

ENDLESS e tensione/corrente dedicata (Max 48V DC - Max 150W - Max 4A).

Vedi pagina ENDLESS.

REFLEX S 2

Remote driver version

50W

Max 1400mA DC

2700K - 6136lm / 3000K - 6326lm

CRI >90

Matt Black - 2700K

Matt Black - 3000K

1A4790400.27.20

1A4790400.30.20

Driver not included

Compulsory accessories / Accessori obbligatori

Matt Black - 2700K - TRIAC/IGBT

Matt Black - 3000K - TRIAC/IGBT

1A4790400.27.02

1A4790400.30.02

Driver / Alimentatore

220-240V(110-120V)

Driver / Alimentatore

220-240V

1400mA/55W(40W)/IP20/DALI - PUSH

- 1-10V

1400mA/50W/IP20/TRIAC - PUSH

REFLEX S 2

REFLEX S 2

1Z0240830.1400

1Z0241370.1400

Not included

Not included

Drivers / Alimentatori

282

283

Matt Black - 2700K - DALI - PUSH - 1-10V

Matt Black - 3000K - DALI - PUSH - 1-10V

1A4790400.27.07

1A4790400.30.07
