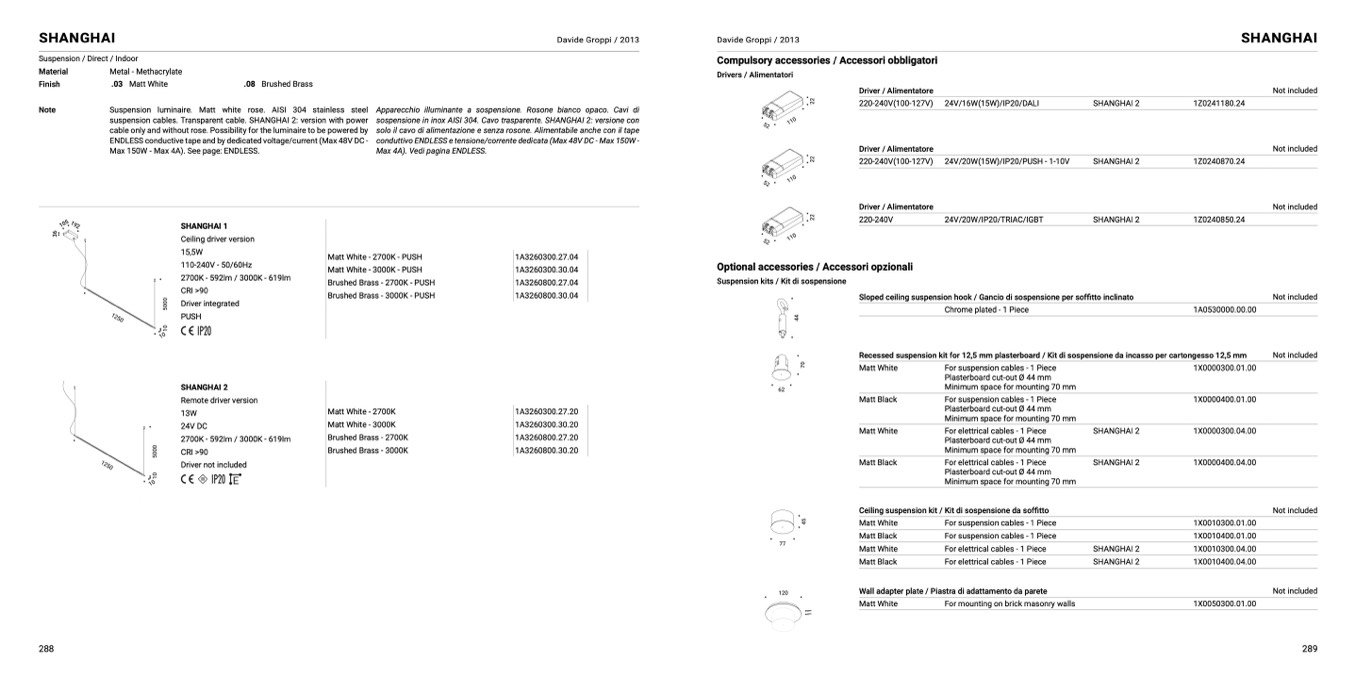

SHANGHAI

Suspension / Direct / Indoor

Material

Metal - Methacrylate

Finish

.03 Matt White

Davide Groppi / 2013

Davide Groppi / 2013

Compulsory accessories / Accessori obbligatori

SHANGHAI

.08 Brushed Brass

Drivers / Alimentatori

Note

Suspension luminaire. Matt white rose. AISI 304 stainless steel

suspension cables. Transparent cable. SHANGHAI 2: version with power

cable only and without rose. Possibility for the luminaire to be powered by

ENDLESS conductive tape and by dedicated voltage/current (Max 48V DC -

Max 150W - Max 4A). See page: ENDLESS.

SHANGHAI 1

Ceiling driver version

15,5W

110-240V - 50/60Hz

2700K - 592lm / 3000K - 619lm

CRI >90

Driver integrated

PUSH

SHANGHAI 2

Remote driver version

13W

24V DC

2700K - 592lm / 3000K - 619lm

CRI >90

Driver not included

Apparecchio illuminante a sospensione. Rosone bianco opaco. Cavi di

sospensione in inox AISI 304. Cavo trasparente. SHANGHAI 2: versione con

solo il cavo di alimentazione e senza rosone. Alimentabile anche con il tape

conduttivo ENDLESS e tensione/corrente dedicata (Max 48V DC - Max 150W -

Max 4A). Vedi pagina ENDLESS.

Driver / Alimentatore

220-240V(100-127V)

Driver / Alimentatore

220-240V(100-127V)

Driver / Alimentatore

220-240V

24V/16W(15W)/IP20/DALI

24V/20W(15W)/IP20/PUSH - 1-10V

24V/20W/IP20/TRIAC/IGBT

SHANGHAI 2

SHANGHAI 2

SHANGHAI 2

1Z0241180.24

1Z0240870.24

1Z0240850.24

1A0530000.00.00

Not included

Not included

Not included

Not included

Not included

Matt White - 2700K - PUSH

Matt White - 3000K - PUSH

Brushed Brass - 2700K - PUSH

Brushed Brass - 3000K - PUSH

1A3260300.27.04

1A3260300.30.04

1A3260800.27.04

1A3260800.30.04

Optional accessories / Accessori opzionali

Suspension kits / Kit di sospensione

Sloped ceiling suspension hook / Gancio di sospensione per soffitto inclinato

Chrome plated - 1 Piece

Recessed suspension kit for 12,5 mm plasterboard / Kit di sospensione da incasso per cartongesso 12,5 mm

Matt White - 2700K

Matt White - 3000K

Brushed Brass - 2700K

Brushed Brass - 3000K

1A3260300.27.20

1A3260300.30.20

1A3260800.27.20

1A3260800.30.20

Matt White

Matt Black

Matt White

Matt Black

For suspension cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

For suspension cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

For elettrical cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

For elettrical cables - 1 Piece

Plasterboard cut-out Ø 44 mm

Minimum space for mounting 70 mm

SHANGHAI 2

SHANGHAI 2

SHANGHAI 2

SHANGHAI 2

1X0000300.01.00

1X0000400.01.00

1X0000300.04.00

1X0000400.04.00

1X0010300.01.00

1X0010400.01.00

1X0010300.04.00

1X0010400.04.00

1X0050300.01.00

Ceiling suspension kit / Kit di sospensione da soffitto

Not included

Not included

Matt White

Matt Black

Matt White

Matt Black

For suspension cables - 1 Piece

For suspension cables - 1 Piece

For elettrical cables - 1 Piece

For elettrical cables - 1 Piece

Wall adapter plate / Piastra di adattamento da parete

Matt White

For mounting on brick masonry walls
