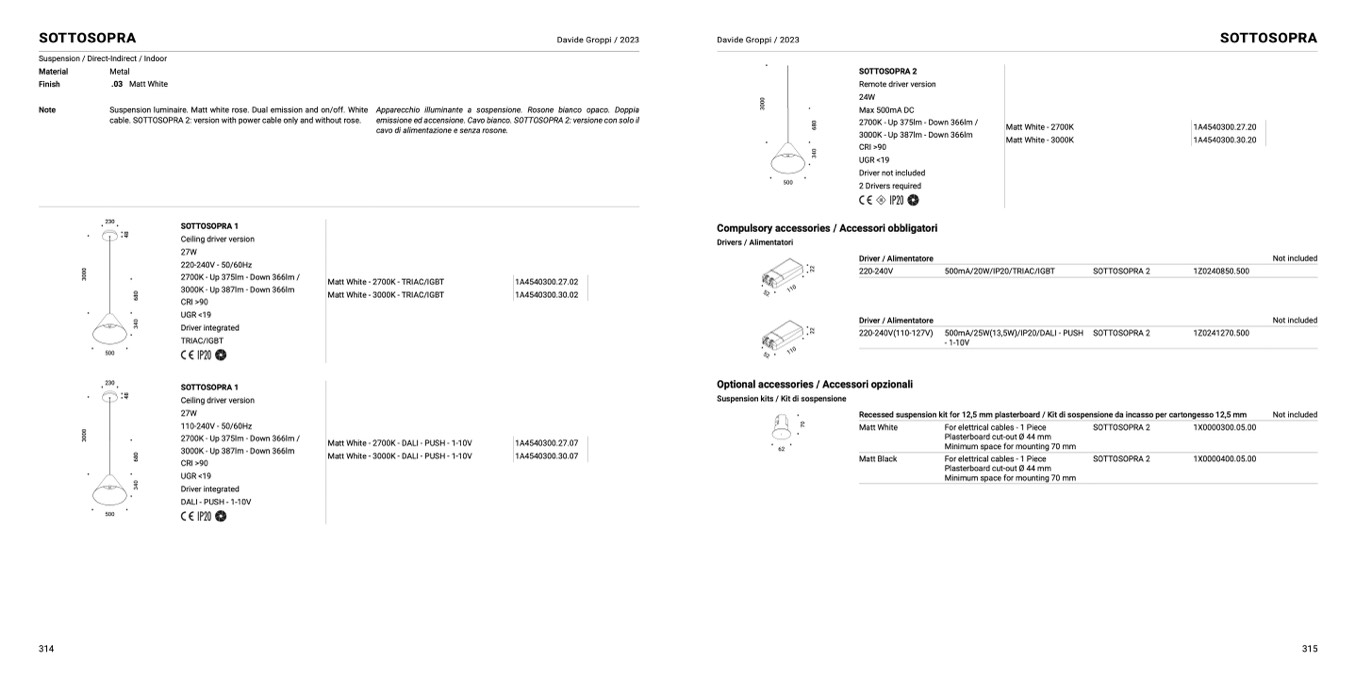

SOTTOSOPRA
Suspension / Direct-Indirect / Indoor
Davide Groppi / 2023
Davide Groppi / 2023
SOTTOSOPRA
Material
Finish
Note
Metal
.03 Matt White
Suspension luminaire. Matt white rose. Dual emission and on/off. White
cable. SOTTOSOPRA 2: version with power cable only and without rose.
SOTTOSOPRA 1
Ceiling driver version
27W
220-240V - 50/60Hz
2700K - Up 375lm - Down 366lm /
3000K - Up 387lm - Down 366lm
CRI >90
UGR <19
Driver integrated
TRIAC/IGBT
SOTTOSOPRA 1
Ceiling driver version
27W
110-240V - 50/60Hz
2700K - Up 375lm - Down 366lm /
3000K - Up 387lm - Down 366lm
CRI >90
UGR <19
Driver integrated
DALI - PUSH - 1-10V
Apparecchio illuminante a sospensione. Rosone bianco opaco. Doppia
emissione ed accensione. Cavo bianco. SOTTOSOPRA 2: versione con solo il
cavo di alimentazione e senza rosone.
SOTTOSOPRA 2
Remote driver version
24W
Max 500mA DC
2700K - Up 375lm - Down 366lm /
3000K - Up 387lm - Down 366lm
CRI >90
UGR <19
Driver not included
2 Drivers required
Compulsory accessories / Accessori obbligatori
Matt White - 2700K
Matt White - 3000K
1A4540300.27.20
1A4540300.30.20
Drivers / Alimentatori
Matt White - 2700K - TRIAC/IGBT
Matt White - 3000K - TRIAC/IGBT
1A4540300.27.02
1A4540300.30.02
Driver / Alimentatore
220-240V
Driver / Alimentatore
220-240V(110-127V)
500mA/20W/IP20/TRIAC/IGBT
500mA/25W(13,5W)/IP20/DALI - PUSH
- 1-10V
SOTTOSOPRA 2
SOTTOSOPRA 2
1Z0240850.500
1Z0241270.500
Not included
Not included
Not included
Optional accessories / Accessori opzionali
Suspension kits / Kit di sospensione
Recessed suspension kit for 12,5 mm plasterboard / Kit di sospensione da incasso per cartongesso 12,5 mm
Matt White - 2700K - DALI - PUSH - 1-10V
Matt White - 3000K - DALI - PUSH - 1-10V
1A4540300.27.07
1A4540300.30.07
Matt White
Matt Black
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
SOTTOSOPRA 2
SOTTOSOPRA 2
1X0000300.05.00
1X0000400.05.00
