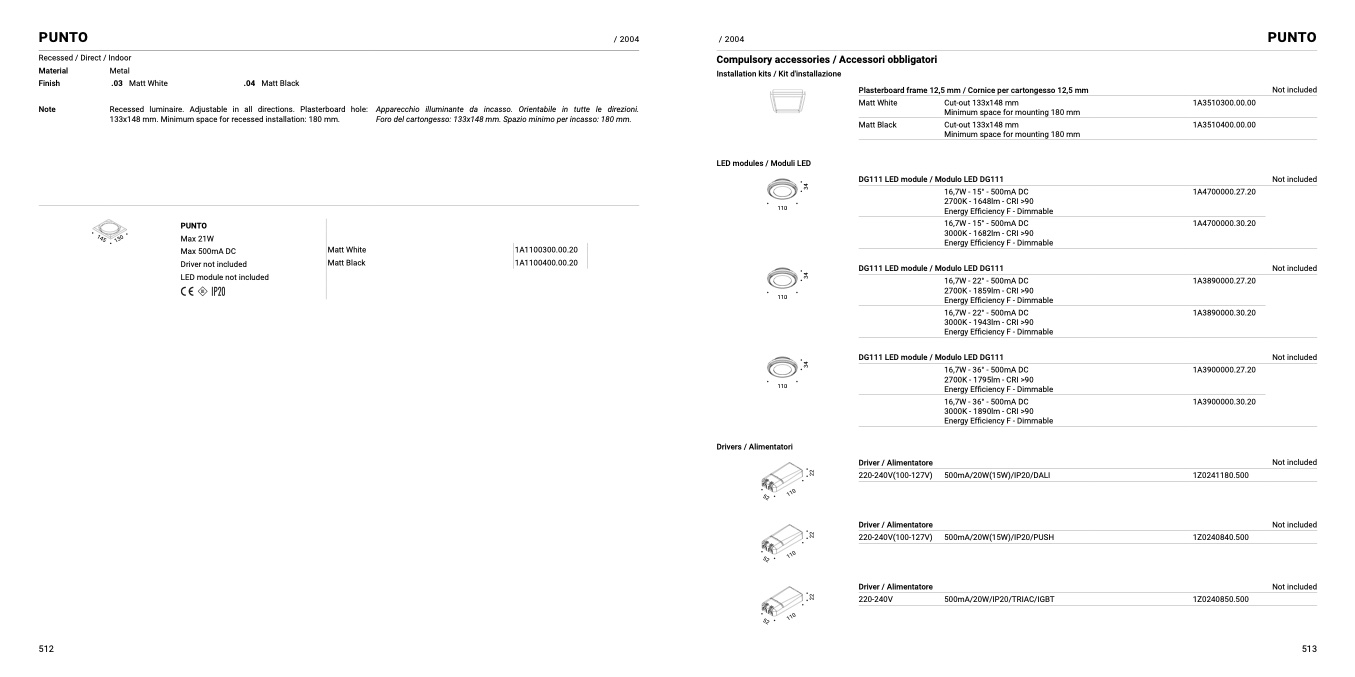

PUNTO

Recessed / Direct / Indoor

Material

Finish

Note

/ 2004

/ 2004

Compulsory accessories / Accessori obbligatori

PUNTO

Metal

.03 Matt White

Installation kits / Kit d'installazione

LED modules / Moduli LED

.04 Matt Black

Recessed luminaire. Adjustable in all directions. Plasterboard hole: Apparecchio illuminante da incasso. Orientabile in tutte le direzioni.

Plasterboard frame 12,5 mm / Cornice per cartongesso 12,5 mm

Not included

Not included

Not included

Not included

Not included

Not included

Not included

133x148 mm. Minimum space for recessed installation: 180 mm.

Foro del cartongesso: 133x148 mm. Spazio minimo per incasso: 180 mm.

Matt White

Matt Black

DG111 LED module /

DG111 LED module /

DG111 LED module /

Driver / Alimentatore

220-240V(100-127V)

Driver / Alimentatore

220-240V(100-127V)

Driver / Alimentatore

220-240V

Cut-out 133x148 mm

Minimum space for mounting 180 mm

Cut-out 133x148 mm

Minimum space for mounting 180 mm

Modulo LED DG111

16,7W - 15° - 500mA DC

2700K - 1648lm - CRI >90

Energy Efficiency F - Dimmable

16,7W - 15° - 500mA DC

3000K - 1682lm - CRI >90

Energy Efficiency F - Dimmable

Modulo LED DG111

16,7W - 22° - 500mA DC

2700K - 1859lm - CRI >90

Energy Efficiency F - Dimmable

16,7W - 22° - 500mA DC

3000K - 1943lm - CRI >90

Energy Efficiency F - Dimmable

Modulo LED DG111

16,7W - 36° - 500mA DC

2700K - 1795lm - CRI >90

Energy Efficiency F - Dimmable

16,7W - 36° - 500mA DC

3000K - 1890lm - CRI >90

Energy Efficiency F - Dimmable

500mA/20W(15W)/IP20/DALI

500mA/20W(15W)/IP20/PUSH

500mA/20W/IP20/TRIAC/IGBT

1A3510300.00.00

1A3510400.00.00

1A4700000.27.20

1A4700000.30.20

1A3890000.27.20

1A3890000.30.20

1A3900000.27.20

1A3900000.30.20

1Z0241180.500

1Z0240840.500

1Z0240850.500

PUNTO

Max 21W

Max 500mA DC

Driver not included

LED module not included

Matt White

Matt Black

1A1100300.00.20

1A1100400.00.20

Drivers / Alimentatori

512

513
