FLASH 6 - FLASH 12 - FLASH 18
Davide Groppi / 2017
Davide Groppi / 2017
Wall-Systems / Direct / Indoor
FLASH

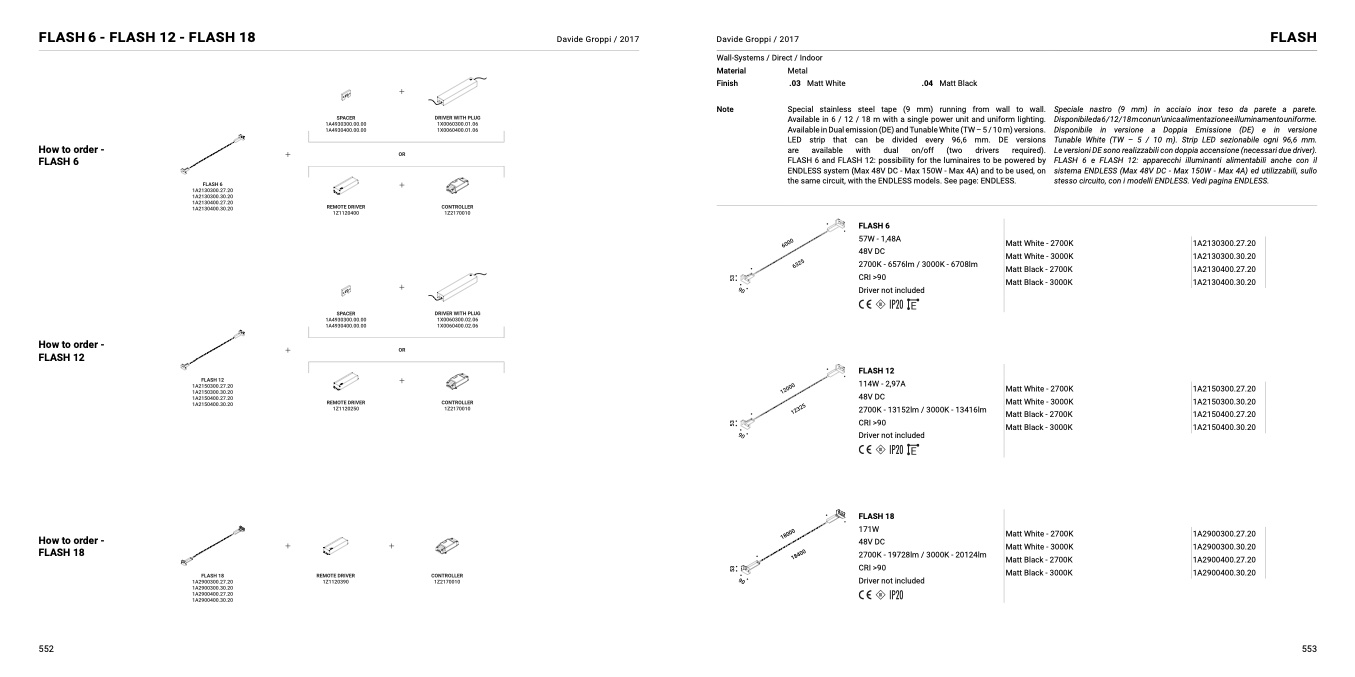

How to order -
FLASH 6
Special stainless steel tape (9 mm) running from wall to wall.
Speciale nastro (9 mm) in acciaio inox teso da parete a parete.
Available in 6 / 12 / 18 m with a single power unit and uniform lighting.
Disponibileda6/12/18mconun’unicaalimentazioneeilluminamentouniforme.
Available in Dual emission (DE) and Tunable White (TW – 5 / 10 m) versions.
Disponibile in versione a Doppia Emissione (DE) e in versione
LED strip that can be divided every 96,6 mm. DE versions
Tunable White (TW – 5 / 10 m). Strip LED sezionabile ogni 96,6 mm.
are available with dual on/off (two drivers required).
Le versioni DE sono realizzabili con doppia accensione (necessari due driver).
FLASH 6 and FLASH 12: possibility for the luminaires to be powered by
FLASH 6 e FLASH 12: apparecchi illuminanti alimentabili anche con il
ENDLESS system (Max 48V DC - Max 150W - Max 4A) and to be used, on
sistema ENDLESS (Max 48V DC - Max 150W - Max 4A) ed utilizzabili, sullo
the same circuit, with the ENDLESS models. See page: ENDLESS.
stesso circuito, con i modelli ENDLESS. Vedi pagina ENDLESS.
How to order -
FLASH 12
FLASH 6
57W - 1,48A
48V DC
2700K - 6576lm / 3000K - 6708lm
CRI >90
Driver not included
FLASH 12
114W - 2,97A
48V DC
2700K - 13152lm / 3000K - 13416lm
CRI >90
Driver not included
FLASH 18
171W
48V DC
2700K - 19728lm / 3000K - 20124lm
CRI >90
Driver not included
Matt White - 2700K
Matt White - 3000K
Matt Black - 2700K
Matt Black - 3000K
Matt White - 2700K
Matt White - 3000K
Matt Black - 2700K
Matt Black - 3000K
Matt White - 2700K
Matt White - 3000K
Matt Black - 2700K
Matt Black - 3000K
1A2130300.27.20
1A2130300.30.20
1A2130400.27.20
1A2130400.30.20
1A2150300.27.20
1A2150300.30.20
1A2150400.27.20
1A2150400.30.20
1A2900300.27.20
1A2900300.30.20
1A2900400.27.20
1A2900400.30.20
How to order -
FLASH 18
552
553
Material
Finish
Note
Metal
.03 Matt White
.04 Matt Black
3
5
90
