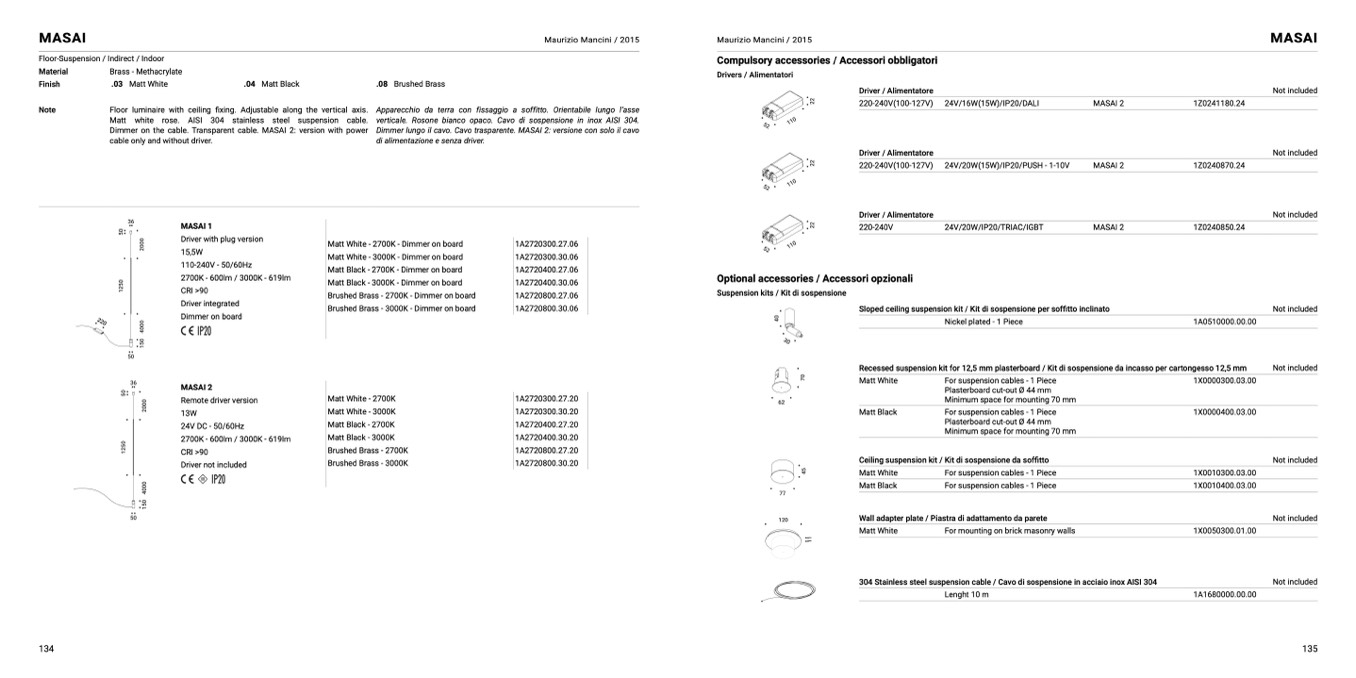

MASAI
Floor-Suspension / Indirect / Indoor
Maurizio Mancini / 2015
Maurizio Mancini / 2015
Compulsory accessories / Accessori obbligatori
MASAI
Material
Finish
Note
Brass - Methacrylate
.03 Matt White
.04 Matt Black
.08
Brushed Brass
Drivers / Alimentatori
Floor luminaire with ceiling fixing. Adjustable along the vertical axis.
Matt white rose. AISI 304 stainless steel suspension cable.
Dimmer on the cable. Transparent cable. MASAI 2: version with power
cable only and without driver.
MASAI 1
Driver with plug version
15,5W
110-240V - 50/60Hz
2700K - 600lm / 3000K - 619lm
CRI >90
Driver integrated
Dimmer on board
MASAI 2
Remote driver version
13W
24V DC - 50/60Hz
2700K - 600lm / 3000K - 619lm
CRI >90
Driver not included
Apparecchio da terra con fissaggio a soffitto. Orientabile lungo l’asse
verticale. Rosone bianco opaco. Cavo di sospensione in inox AISI 304.
Dimmer lungo il cavo. Cavo trasparente. MASAI 2: versione con solo il cavo
di alimentazione e senza driver.
Driver / Alimentatore
220-240V(100-127V)
Driver / Alimentatore
220-240V(100-127V)
Driver / Alimentatore
220-240V
24V/16W(15W)/IP20/DALI
24V/20W(15W)/IP20/PUSH - 1-10V
24V/20W/IP20/TRIAC/IGBT
MASAI 2
MASAI 2
MASAI 2
1Z0241180.24
1Z0240870.24
1Z0240850.24
1A0510000.00.00
incasso per cartongesso 12,5 mm
Not included
Not included
Not included
Not included
Not included
Not included
Not included
Not included
Matt White - 2700K - Dimmer on board
Matt White - 3000K - Dimmer on board
Matt Black - 2700K - Dimmer on board
Matt Black - 3000K - Dimmer on board
Brushed Brass - 2700K - Dimmer on board
Brushed Brass - 3000K - Dimmer on board
Matt White - 2700K
Matt White - 3000K
Matt Black - 2700K
Matt Black - 3000K
Brushed Brass - 2700K
Brushed Brass - 3000K
1A2720300.27.06
1A2720300.30.06
1A2720400.27.06
1A2720400.30.06
1A2720800.27.06
1A2720800.30.06
1A2720300.27.20
1A2720300.30.20
1A2720400.27.20
1A2720400.30.20
1A2720800.27.20
1A2720800.30.20
Optional accessories / Accessori opzionali
Suspension kits / Kit di sospensione
Sloped ceiling suspension kit / Kit di sospensione per soffitto inclinato
Nickel plated - 1 Piece
Recessed suspension kit for 12,5 mm plasterboard / Kit di sospensione da
Matt White
Matt Black
For suspension cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
For suspension cables - 1 Piece
Plasterboard cut-out Ø 44 mm
Minimum space for mounting 70 mm
1X0000300.03.00
1X0000400.03.00
1X0010300.03.00
1X0010400.03.00
1X0050300.01.00
1A1680000.00.00
Ceiling suspension kit / Kit di sospensione da soffitto
Matt White
For suspension cables - 1 Piece
Matt Black
For suspension cables - 1 Piece
Wall adapter plate / Piastra di adattamento da parete
Matt White
For mounting on brick masonry walls
304 Stainless steel suspension cable / Cavo di sospensione in acciaio inox
Lenght 10 m
AISI 304
