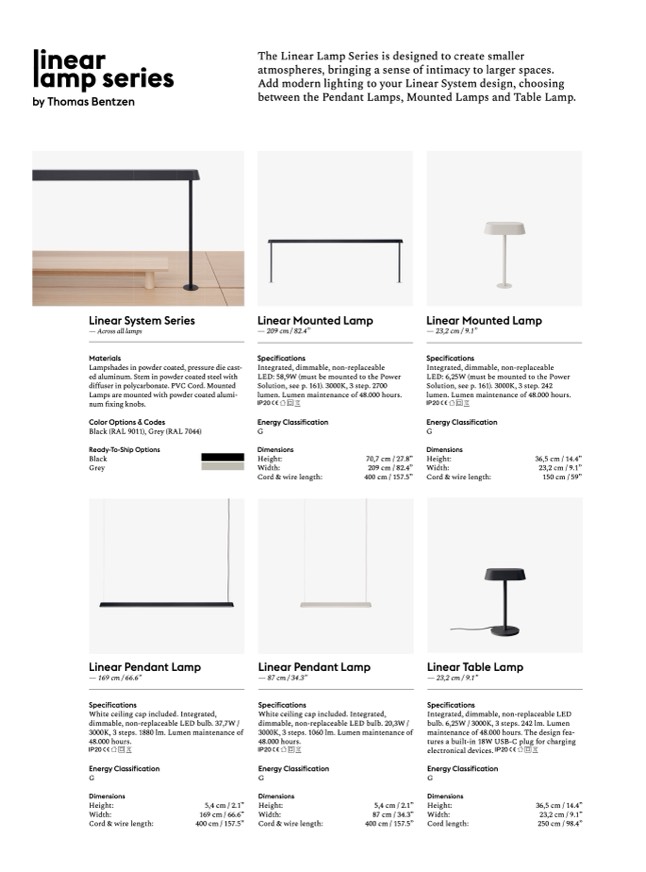

linear
lamp series
by Thomas Bentzen
The Linear Lamp Series is designed to create smaller
atmospheres, bringing a sense of intimacy to larger spaces.
Add modern lighting to your Linear System design, choosing
between the Pendant Lamps, Mounted Lamps and Table Lamp.
Linear System Series
— Across all lamps
Materials
Lampshades in powder coated, pressure die cast-
ed aluminum. Stem in powder coated steel with
diffuser in polycarbonate. PVC Cord. Mounted
Lamps are mounted with powder coated alumi-
num fixing knobs.
Color Options & Codes
Black (RAL 9011), Grey (RAL 7044)
Ready-To-Ship Options
Black
Grey
Linear Mounted Lamp
— 209 cm / 82.4”
Specifications
Integrated, dimmable, non-replaceable
LED: 58,9W (must be mounted to the Power
Solution, see p. 161). 3000K, 3 step. 2700
lumen. Lumen maintenance of 48.000 hours.
Linear Mounted Lamp
— 23,2 cm / 9.1”
Specifications
Integrated, dimmable, non-replaceable
LED: 6,25W (must be mounted to the Power
Solution, see p. 161). 3000K, 3 step. 242
lumen. Lumen maintenance of 48.000 hours.
Energy Classification
G
Dimensions
Height:
Width:
Cord & wire length:
70,7 cm / 27.8”
209 cm / 82.4”
400 cm / 157.5”
Energy Classification
G
Dimensions
Height:
Width:
Cord & wire length:
Linear Table Lamp
— 23,2 cm / 9.1”
Specifications
Integrated, dimmable, non-replaceable LED
bulb. 6,25W / 3000K, 3 steps. 242 lm. Lumen
maintenance of 48.000 hours. The design fea-
tures a built-in 18W USB-C plug for charging
electronical devices.
36,5 cm / 14.4”
23,2 cm / 9.1”
150 cm / 59”
Linear Pendant Lamp
— 169 cm / 66.6”
Specifications
White ceiling cap included. Integrated,
dimmable, non-replaceable LED bulb. 37,7W /
3000K, 3 steps. 1880 lm. Lumen maintenance of
48.000 hours.
Energy Classification
Linear Pendant Lamp
— 87 cm / 34.3”
Specifications
White ceiling cap included. Integrated,
dimmable, non-replaceable LED bulb. 20,3W /
3000K, 3 steps. 1060 lm. Lumen maintenance of
48.000 hours.
Energy Classification
Energy Classification
G
G
G
Dimensions
Height:
Width:
Cord & wire length:
5,4 cm / 2.1”
169 cm / 66.6”
400 cm / 157.5”
Dimensions
Height:
Width:
Cord & wire length:
5,4 cm / 2.1”
87 cm / 34.3”
400 cm / 157.5”
Dimensions
Height:
Width:
Cord length:
36,5 cm / 14.4”
23,2 cm / 9.1”
250 cm / 98.4”
