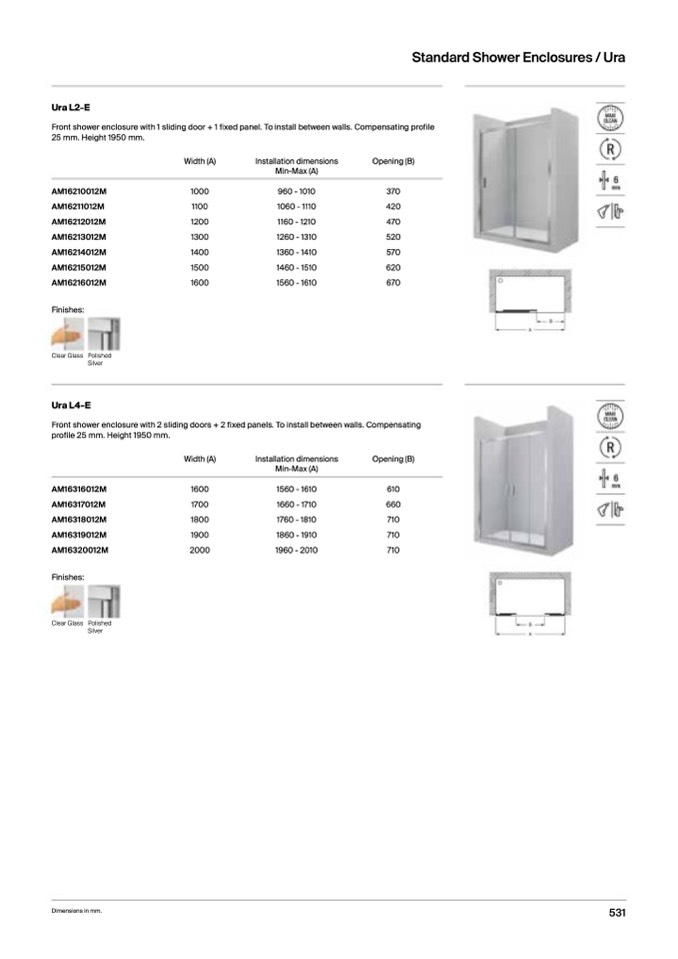

Ura L2-E

Front shower enclosure with 1 sliding door + 1 fixed panel. To install between walls. Compensating profile

25 mm. Height 1950 mm.

AM16210012M

AM16211012M

AM16212012M

AM16213012M

AM16214012M

AM16215012M

AM16216012M

Finishes:

Clear Glass Polished

Silver

UraL4-E

Width (A)

1000

1100

1200

1300

1400

1500

1600

Installation dimensions

Min-Max (A)

960 - 1010

1060 - 1110

1160 - 1210

1260 - 1310

1360 - 1410

1460 - 1510

1560 - 1610

Opening (B)

370

420

470

520

570

620

670

Front shower enclosure with 2 sliding doors + 2 fixed panels. To install between walls. Compensating

profile 25 mm. Height 1950 mm.

AM16316012M

AM16317012M

AM16318012M

AM16319012M

AM16320012M

Finishes:

Clear Glass Polished

Silver

Width (A)

1600

1700

1800

1900

2000

Installation dimensions

Min-Max (A)

1560 - 1610

1660 - 1710

1760 - 1810

1860 - 1910

1960 - 2010

Opening (B)

610

660

710

710

710

Dimensions in mm.

531

Standard Shower Enclosures / Ura
