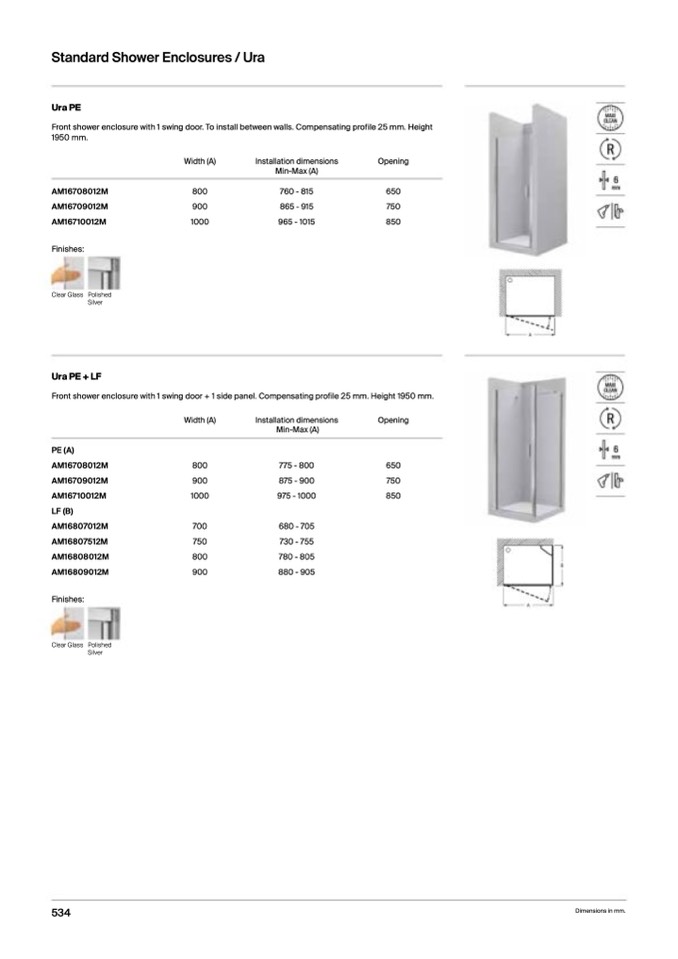

Standard Shower Enclosures / Ura

Ura PE

Front shower enclosure with 1 swing door. To install between walls. Compensating profile 25 mm. Height

1950 mm.

AM16708012M

AM16709012M

AM16710012M

Finishes:

Clear Glass Polished

Silver

UraPE+LF

760 - 815

650

865 - 915

750

965 - 1015

850

Width (A)

800

900

1000

Installation dimensions

Min-Max (A)

Opening

Front shower enclosure with 1 swing door + 1 side panel. Compensating profile 25 mm. Height 1950 mm.

PE (A)

AM16708012M

AM16709012M

AM16710012M

LF(B)

AM16807012M

AM16807512M

AM16808012M

AM16809012M

Finishes:

Clear Glass Polished

Silver

775 - 800

650

875 - 900

750

975 - 1000

850

680 - 705

730 - 755

780 - 805

880 - 905

534

Dimensions in mm.

Width (A)

800

900

1000

700

750

800

900

Installation dimensions

Min-Max (A)

Opening
