Piletta a scarico orizzontale rettangolare (deflusso 32 lt/min)

WKT0001

WKT0002

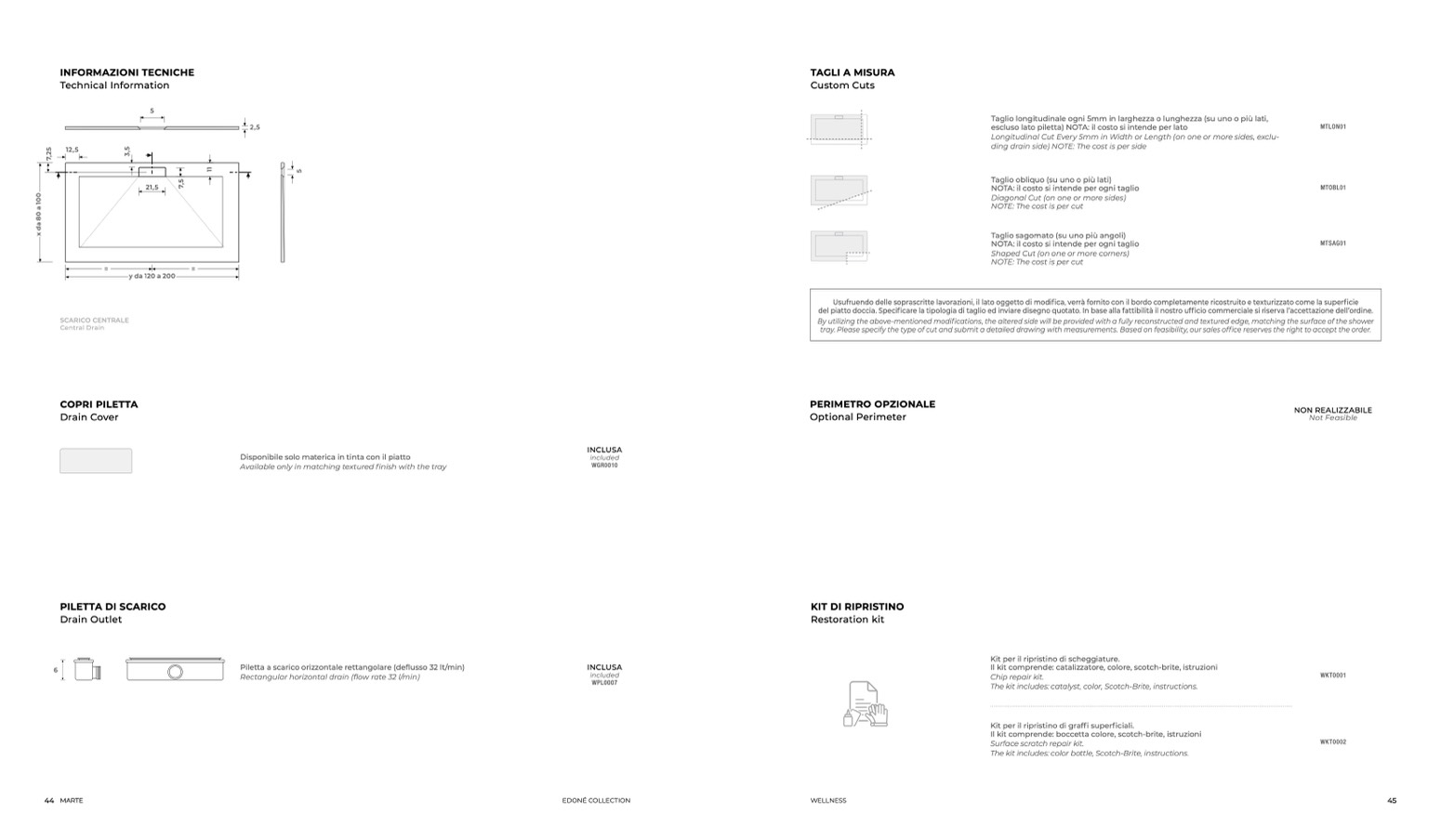

INFORMAZIONI TECNICHE

Technical Information

TAGLI A MISURA

Custom Cuts

12,5

SCARICO CENTRALE

Central Drain

COPRI PILETTA

Drain Cover

PERIMETRO OPZIONALE

Optional Perimeter

NON REALIZZABILE

=

=

y da 120 a 200

PILETTA DI SCARICO

Drain Outlet

KIT DI RIPRISTINO

Restoration kit

44 MARTE

geberit ribassata

EDONÉ COLLECTION

WELLNESS

45

5

Taglio longitudinale ogni 5mm in larghezza o lunghezza (su uno o più lati,

escluso lato piletta) NOTA: il costo si intende per lato

Longitudinal Cut Every 5mm in Width or Length (on one or more sides, exclu-

ding drain side) NOTE: The cost is per side

Taglio obliquo (su uno o pi

ù lati)

NOTA: il costo si intende per ogni taglio

Diagonal Cut (on one or more sides)

NOTE: The cost is per cut

Taglio sagomato (su uno pi

ù angoli)

NOTA: il costo si intende per ogni taglio

Shaped Cut (on one or more corners)

NOTE: The cost is per cut

geberit normal

2,5

MTLON01

MTOBL01

MTSAG01

Disponibile solo materica in tinta con il piatto

Available only in matching textured finish with the tray

INCLUSA

included

WGR0010

3026 marte

INCLUSA

included

WPL0007

Kit per il ripristino di scheggiature.

Il kit comprende: catalizzatore, colore, scotch-brite, istruzioni

Chip repair kit.

The kit includes: catalyst, color, Scotch-Brite, instructions.

Kit per il ripristino di graffi superficiali.

Il kit comprende: boccetta colore, scotch-brite, istruzioni

Surface scratch repair kit.

The kit includes: color bottle, Scotch-Brite, instructions.

Rectangular horizontal drain (flow rate 32 l/min)

Not Feasible

7

,

5

21,5

x

d

a

8

0

a

1

0

0

1

1

5

7

,

2

5

3

,

5

Usufruendo delle soprascritte lavorazioni, il lato oggetto di modi

fica, verrà fornito con il bordo completamente ricostruito e texturizzato come la super

ficie

del piatto doccia. Speci

ficare la tipologia di taglio ed inviare disegno quotato. In base alla fattibilità il nostro ufficio commerciale si riserva l’accettazione dell’ordine.

By utilizing the above-mentioned modi

fications, the altered side will be provided with a fully reconstructed and textured edge, matching the surface of the shower

tray. Please specify the type of cut and submit a detailed drawing with measurements. Based on feasibility, our sales office reserves the right to accept the order.
