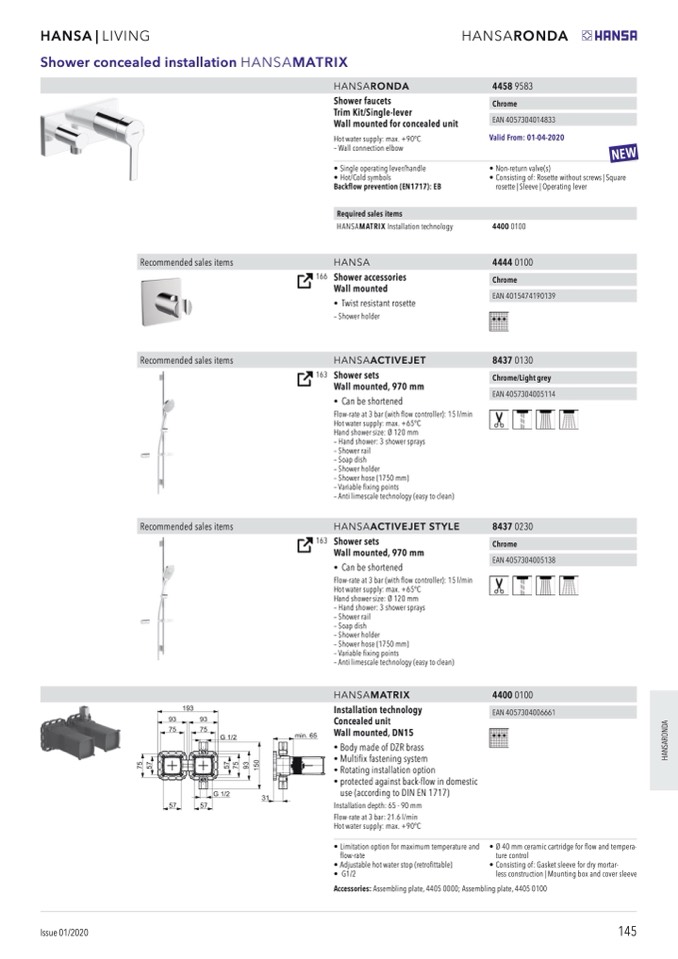

HANSA | LIVING
Shower concealed installation HANSAMATRIX
HANSARONDA
44589583
Chrome
EAN 4057304014833
Valid From: 01-04-2020
• Non-return valve(s)
• Consisting of: Rosette without screws | Square
Issue 01/2020
145
Recommended sales items
Recommended sales items
Recommended sales items
rosette | Sleeve | Operating lever
4400 0100
4444 0100
Chrome
EAN 4015474190139
8437 0130
Chrome/Light grey
EAN 4057304005114
8437 0230
Chrome
EAN 4057304005138
4400 0100
EAN 4057304006661
€
€
HANSARONDA
Shower faucets
Trim Kit/Single-lever
Wall mounted for concealed unit
Hot water supply: max. +90°C
– Wall connection elbow
• Single operating lever/handle
• Hot/Cold symbols
Backflow prevention (EN1717): EB
Required sales items
HANSAMATRIX Installation technology
HANSA
166 Shower accessories
Wall mounted
• Twistresistantrosette
– Shower holder
HANSAACTIVEJET
163 Shower sets
Wall mounted, 970 mm
• Canbeshortened
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 120 mm
– Hand shower: 3 shower sprays
– Shower rail
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
HANSAACTIVEJET STYLE
163 Shower sets
Wall mounted, 970 mm
• Canbeshortened
Flow-rate at 3 bar (with flow controller): 15 l/min
Hot water supply: max. +65°C
Hand shower size: Ø 120 mm
– Hand shower: 3 shower sprays
– Shower rail
– Soap dish
– Shower holder
– Shower hose (1750 mm)
– Variable fixing points
– Anti limescale technology (easy to clean)
HANSAMATRIX
Installation technology
Concealed unit
Wall mounted, DN15
• Body made of DZR brass
• Multifix fastening system
• Rotating installation option
• protected against back-flow in domestic
use (according to DIN EN 1717)
Installation depth: 65 - 90 mm
Flow-rate at 3 bar: 21.6 l/min
Hot water supply: max. +90°C
• Limitation option for maximum temperature and
flow-rate
• Adjustable hot water stop (retrofittable)
• G1/2
€ 271,00
H
A
N
S
A
R
O
N
D
A
Accessories: Assembling plate, 4405 0000; Assembling plate, 4405 0100
• Ø 40 mm ceramic cartridge for flow and tempera-
ture control
• Consisting of: Gasket sleeve for dry mortar-
lessconstruction|Mountingboxandcoversleeve
€ 191,00
€
