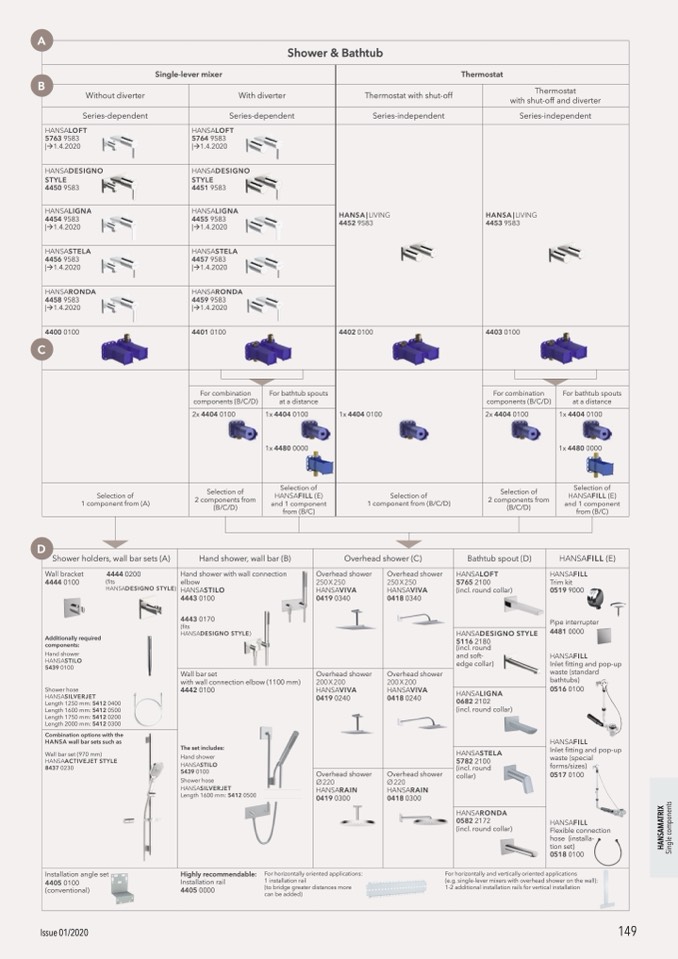

A
Shower & Bathtub
B
Without diverter
4400 0100
C
Single-lever mixer
Thermostat
With diverter
Thermostat with shut-off
Thermostat
with shut-off and diverter
Series-dependent
Series-dependent
Series-independent
Series-independent
HANSALOFT
5763 9583
|�1.4.2020
HANSALOFT
5764 9583
|�1.4.2020
HANSADESIGNO
STYLE
4450 9583
HANSADESIGNO
STYLE
4451 9583
HANSALIGNA
4454 9583
|�1.4.2020
HANSALIGNA
4455 9583
|�1.4.2020
HANSA |LIVING
4452 9583
HANSA |LIVING
4453 9583
HANSASTELA
4456 9583
|�1.4.2020
HANSASTELA
4457 9583
|�1.4.2020
HANSARONDA
4458 9583
|�1.4.2020
HANSARONDA
4459 9583
|�1.4.2020
4401 0100
4402 0100
4403 0100
For combination
components (B/C/D)
For bathtub spouts
at a distance
1x 4404 0100
For combination
components (B/C/D)
For bathtub spouts
at a distance
2x 4404 0100
1x 4404 0100
1x 4480 0000
2x 4404 0100
1x 4404 0100
1x 4480 0000
Selection of
1 component from (A)
Selection of
2 components from
(B/C/D)
Selection of
HANSAFILL (E)
and 1 component
from (B/C)
Selection of
1 component from (B/C/D)
Selection of
2 components from
(B/C/D)
Selection of
HANSAFILL (E)
and 1 component
from (B/C)
D
Shower holders, wall bar sets (A)
Hand shower, wall bar (B)
Overhead shower (C)
Bathtub spout (D)
HANSADESIGNO STYLE
5116 2180
(incl. round
and soft-
edge collar)
HANSAFILL (E)
Wall bracket
4444 0100
Additionally required
components:
Hand shower
HANSASTILO
5439 0100
Shower hose
4444 0200
(fits
HANSADESIGNO STYLE)
Wall bar set
with wall connection elbow (1100 mm)
4442 0100
The set includes:
Hand shower
HANSASTILO
5439 0100
Shower hose
HANSASILVERJET
Length 1600 mm: 5412 0500
Overhead shower
200 X 200
HANSAVIVA
0419 0240
Overhead shower
200 X 200
HANSAVIVA
0418 0240
HANSALIGNA
0682 2102
(incl. round collar)
HANSASILVERJET
Length 1250 mm: 5412 0400
Length 1600 mm: 5412 0500
Length 1750 mm: 5412 0200
Length 2000 mm: 5412 0300
Hand shower with wall connection
elbow
HANSASTILO
4443 0100
4443 0170
(fits
HANSADESIGNO STYLE)
Overhead shower
250 X 250
HANSAVIVA
0419 0340
Overhead shower
250 X 250
HANSAVIVA
0418 0340
HANSALOFT
5765 2100
(incl. round collar)
HANSAFILL
Trim kit
0519 9000
Pipe interrupter
4481 0000
HANSAFILL
Inlet fitting and pop-up
waste (standard
bathtubs)
0516 0100
HANSAFILL
Inlet fitting and pop-up
waste (special
forms/sizes)
0517 0100
HANSAFILL
Flexible connection
hose (installa-
tion set)
0518 0100
Combination options with the
HANSA wall bar sets such as
Wall bar set (970 mm)
HANSAACTIVEJET STYLE
8437 0230
HANSASTELA
5782 2100
(incl. round
collar)
Overhead shower
Ø 220
HANSARAIN
0419 0300
Overhead shower
Ø 220
HANSARAIN
0418 0300
HANSARONDA
0582 2172
(incl. round collar)
Installation angle set
4405 0100
(conventional)
Highly recommendable:
Installation rail
4405 0000
For horizontally oriented applications:
1 installation rail
(to bridge greater distances more
can be added)
For horizontally and vertically oriented applications
(e.g. single-lever mixers with overhead shower on the wall):
1-2 additional installation rails for vertical installation
Issue 01/2020
149
